PCM1000

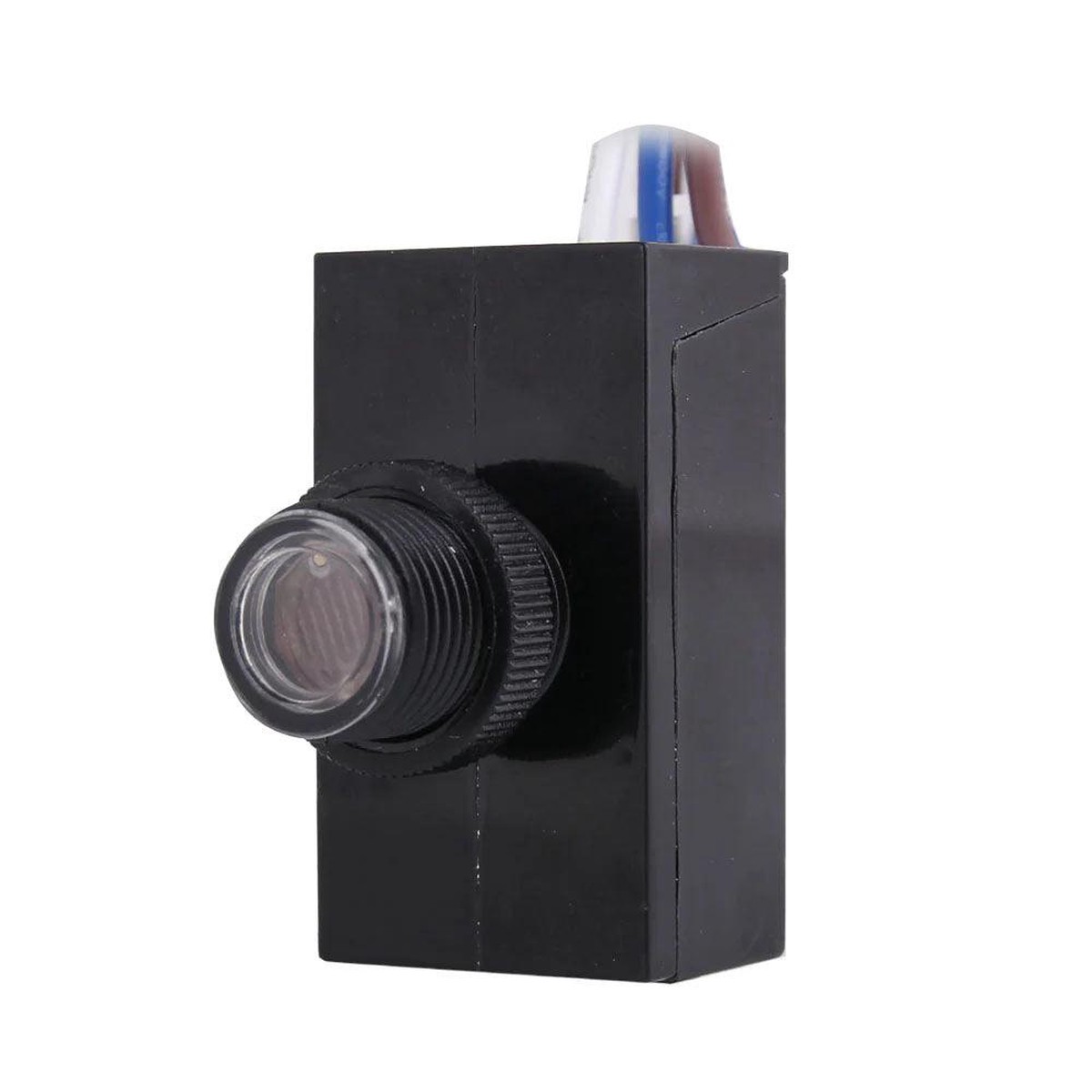

PCM1000 Mini Photocell

– A self-contained photocell unit designed to switch mains appliances on and off as ambient light levels change.

– Designed to be fitted to outdoor lighting, either as a nighttime security or courtesy light.

– The device ignores brief light changes, i.e. passing car headlights, and has a weatherproof lens for external mounting (although the main body should be housed in a waterproof enclosure).

– Connection is via three wires: Brown = Constant Live, Blue = Neutral, Red = Switched Live. Supplied with fixing nuts and gaskets.

Technical Data:

– Supply Voltage: 240V 50/60Hz

– Load: 1200W Tungsten

– Dimensions: 52mm x 27mm x 42mm (h,w,d)

– Fixing Hole: 18mm dia.

– Weight: 53g
