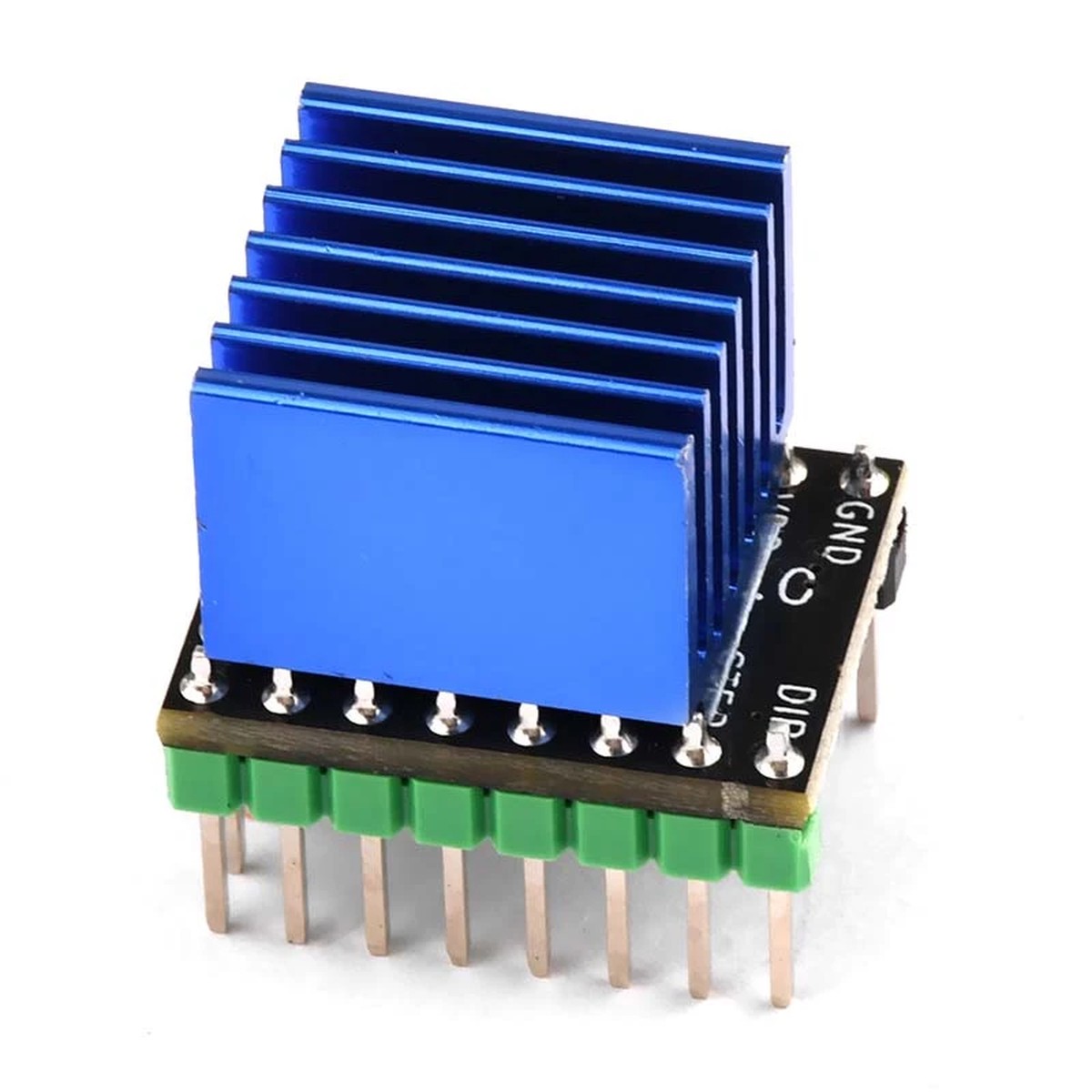

MKS TMC2209 Stepper Motor Driver Module: Optimise Your 3D Printing with Superior Performance
Take your 3D printing experience to the next level with the MKS TMC2209 Stepper Motor Driver Module, designed for precision, efficiency, and ultra-quiet operation. Whether you are upgrading your 3D printer or assembling one from scratch, this stepper motor driver delivers exceptional results. With advanced features like UART mode support, seamless compatibility with MKS platforms like Skipr, Monster8, Nano V3, and Gen_LV2.x, and enhanced heat dissipation, this module guarantees high reliability and outstanding performance.
Compared to its predecessor, the TMC2208, the TMC2209 offers higher current handling capabilities, lower heat generation, and smoother operation. Its ultra-silent functionality, combined with a maximum peak current of 2.5A, makes it ideal for intricate 3D printing projects. Perfect for hobbyists and professionals alike, the MKS TMC2209 ensures unparalleled precision and smooth performance.
Key Features: High-Performance Design

Ultra-Quiet Operation: Built with TMCs advanced technology, it ensures noise-free performance, essential for uninterrupted work environments.
High Current Capacity: Handles a maximum peak current of 2.5A and stable operating current of 1.8A, providing excellent performance for demanding tasks.
Efficient Heat Dissipation: Generates less heat compared to other drivers in the TMC series, ensuring stability and longevity.
256 Microstepping: Offers up to 1/256 microstepping, delivering smoother motion and higher resolution.
Versatile Connectivity: Supports UART mode for easy configuration without jumpers, ensuring compatibility with MKS SGEN-L and other platforms.
Durable Build: Designed with robust materials and an included heatsink for enhanced thermal management.
Standard Current: 1.25A
Maximum Current: 2.5A
Logic Voltage: 3.3V/5V
Input Voltage: 5.5V-28V
Microstepping: Up to 1/256
Modes Supported: DIR/STEP, UART
