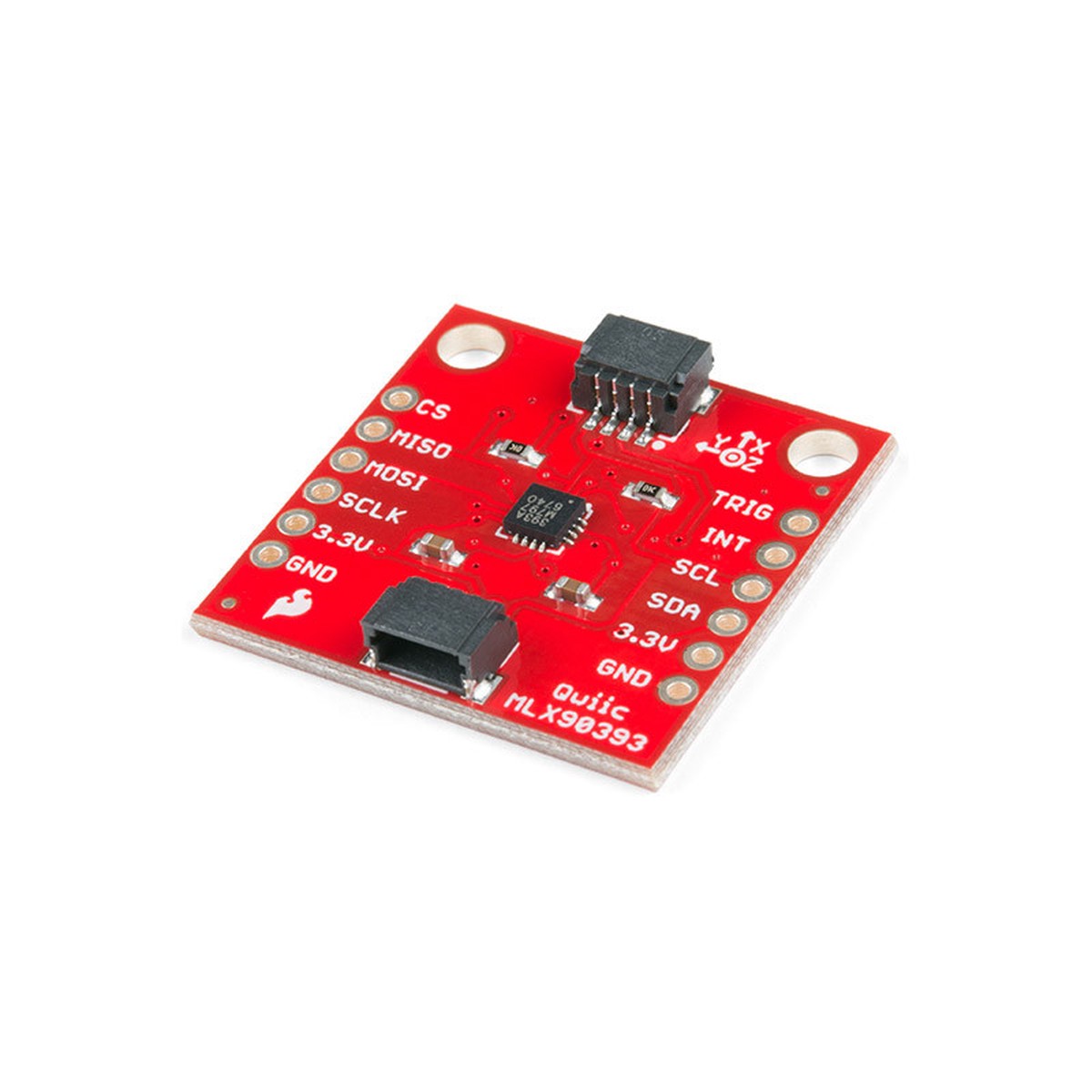

The SparkFun MLX90393 Magnetometer Breakout is a triple-axis magnetic sensor board capable of sensing very small fields, while still behaving as one would expect during saturation in larger fields (like a nearby magnet). The MLX90393 breakout can be used as a compass sensor but also works well as a non-contact controller, a flow meter with a magnetic impeller, or a linear actuator position sensor. To make it even easier to to get your readings, all communication is enacted exclusively via I2C, utilizing our handy Qwiic system.
STEMMA QT / Qwiic 4-pin 1mm Pitch White Female Connector Cable 150mm Long – Both Sidecan be purchased seperately.
Resources
Schematic
Eagle Files
Hookup Guide
Datasheet(MLX90393)
Arduino Library(Special thanks to Ted Yapo!)
Qwiic Page
GitHub
