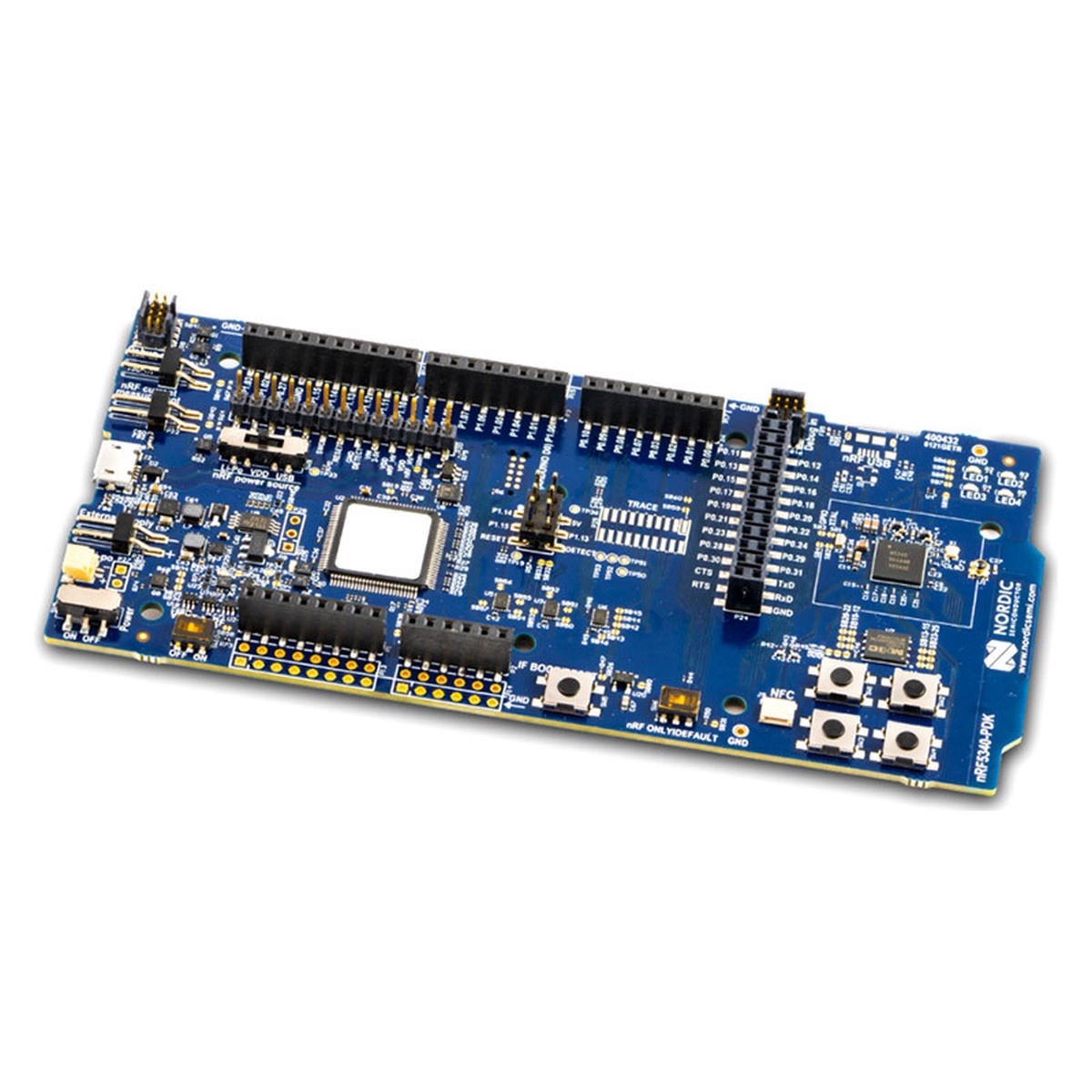

The nRF5340 PDK is the preview development kit for the nRF5340 SoC, containing everything needed to get started with development, on a single board. The PDK supports development with an extensive range of wireless protocols. It supports Bluetooth Low Energy and all Bluetooth 5 features, including Long Range, 2 Mbps and Advertising Extensions. Mesh protocols like Bluetooth mesh, Thread and Zigbee can be run concurrently with Bluetooth LE, enabling smartphones to provision, commission, configure and control mesh nodes. NFC, ANT, 802.15.4 and 2.4 GHz proprietary protocols are also supported. The PDK is bundled with an NFC antenna that quickly enables testing of nRF5340s NFC-A tag peripheral. A SEGGER J-Link debugger is on the board, enabling full-blown programming and debugging, of both the nRF5340 SoC and external targets.

Key Features

Versatile preview development kit for nRF5340 SoC
Arduino Rev3 compatible
2.4 GHz and NFC antennas
SWF RF connector for direct RF measurements
User-programmable LEDs(4) and buttons(4)
SEGGER J-Link OB programmer/debugger
Pins for measuring power consumption
1.7-5.0 V supply from USB, external, Li-Po battery or CR2032 coin cell battery

Resources

Datasheet
Heart Rate Monitor Demo
Hardware files
Developing with nRF Connect SDK Getting Started Guide
