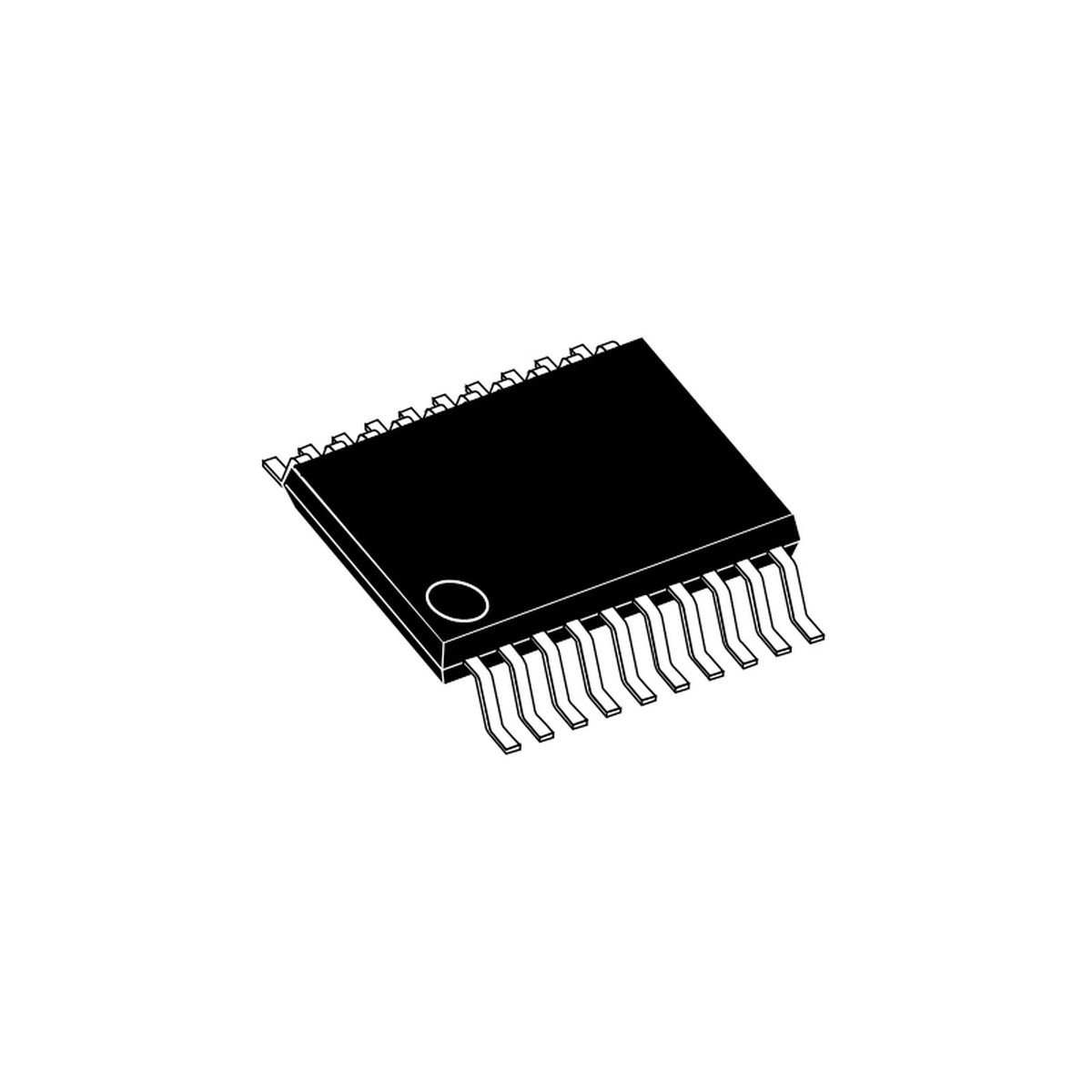

The PCA9544A is a highly versatile, 4-channel bidirectional I2C bus multiplexer, designed to allow a single I2C master to interface with up to four independent slave devices. Controlled via a standard I2C control register, it supports selective switching of SCL/SDA lines to one of four downstream channels. Each channel features a dedicated interrupt input (INT0INT3), while a common INT output signals the master via logical ANDing. The device also includes a power-on reset function that initializes the internal state machine with no channel selected, ensuring consistent startup behaviour. Engineered with pass-gate architecture, the PCA9544A enables voltage-level translation, allowing components operating at 1.8V, 2.5V, or 3.3V to safely communicate with 5V devices, eliminating the need for external logic level converters. Ideal for complex embedded systems, multi-sensor modules, and mixed-voltage designs, this IC offers a reliable, low-latency switching solution across I2C buses.
