Pixy2 surpasses the original Pixy in terms of size, speed, and capabilities. Similar to its predecessor, Pixy2 possesses the ability to learn object detection with a simple button press. However, Pixy2 sets itself apart with its enhanced algorithms, specifically designed to detect and track lines, making it an excellent choice for line-following robots. These advanced algorithms not only identify intersections but also recognize “road signs.” These road signs can provide crucial instructions to your robot, such as turning left, turning right, or slowing down. Remarkably, Pixy2 accomplishes all of these tasks at an impressive frame rate of 60 frames per second, allowing your robot to operate swiftly.

Pixy 2 Machine Vision Camera Review with Arduino

Pixy2 Camera – Image Recognition for Arduino & Raspberry Pi

Vision artificial con pixy 2 arduino modulo mp3 y display oled de la mano de DFRobot

Connect directly to Arduino or Raspberry Pi

No need to futz around with tiny wires Pixy2 comes with a special cable to plug directly into an Arduino and a USB cable to plug into a Raspberry Pi, so you can get started quickly. No Arduino or Raspberry Pi? No problem! Pixy2 has several interfaces (SPI, I2C, UART, and USB) and simple communications, so you get your chosen controller talking to Pixy2 in short order.
Simplify your programming

To get you up and running as fast as possible, we offer software libraries forArduinoandRaspberry Pi. Pixy2 makes your programs simpler by only sending the data youre looking for. For example, if you teach Pixy2 a purple object, you will only receive data (X-Y coordinates, size, and unique ID) about the purple objects that Pixy2 detects.

Key Features

Pixy2 detects lines, intersections, and small barcodes, intended for line-following robots
Improved framerate 60 frames per second
Tracking algorithms have been added to color-based object detection
Improved and simplified libraries for Arduino, Raspberry Pi, and other controllers
Integrated light source

Specification

Lens type: Standard M12
Processor: NXP LPC4330, 204 MHz, dual core
Image sensor: Aptina MT9M114, 1296976 resolution with integrated image flow processor
Lens field-of-view: 60 degrees horizontal, 40 degrees vertical
Power consumption: 140 mA typical
Power input: USB input (5V) or unregulated input (6V to 10V)
RAM: 264K bytes
Flash: 2M bytes
Available data outputs: UART serial, SPI, I2C, USB, digital, analog
Dimensions:1.5 x 1.65 x 0.6
Weight: 10 grams
Integrated light source, approximately 20 lumens

Package Contents

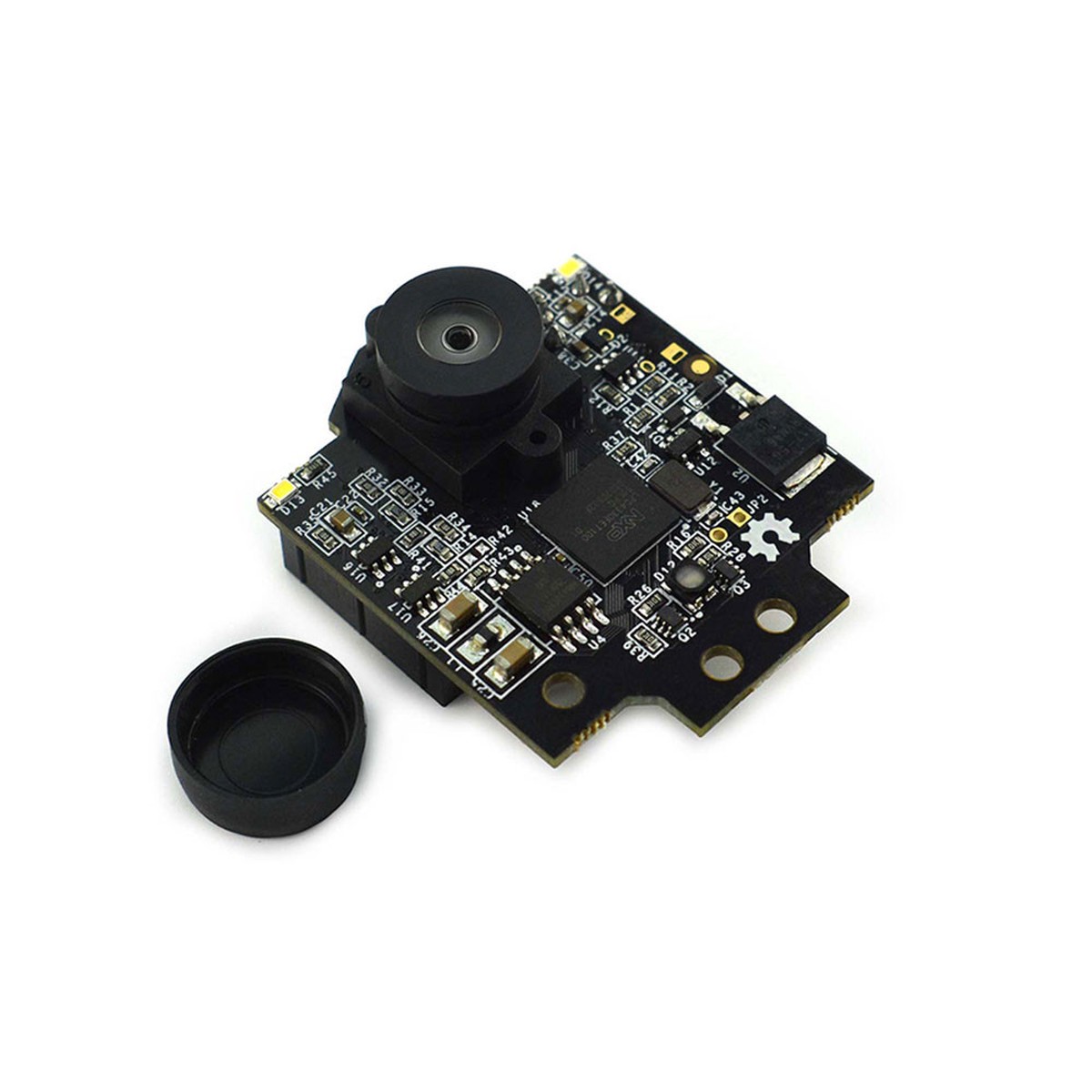

Pixy 2 CMUcam5 Image Sensor x1
FC-10P to FC-6P Cable x1
Screw Package x1
