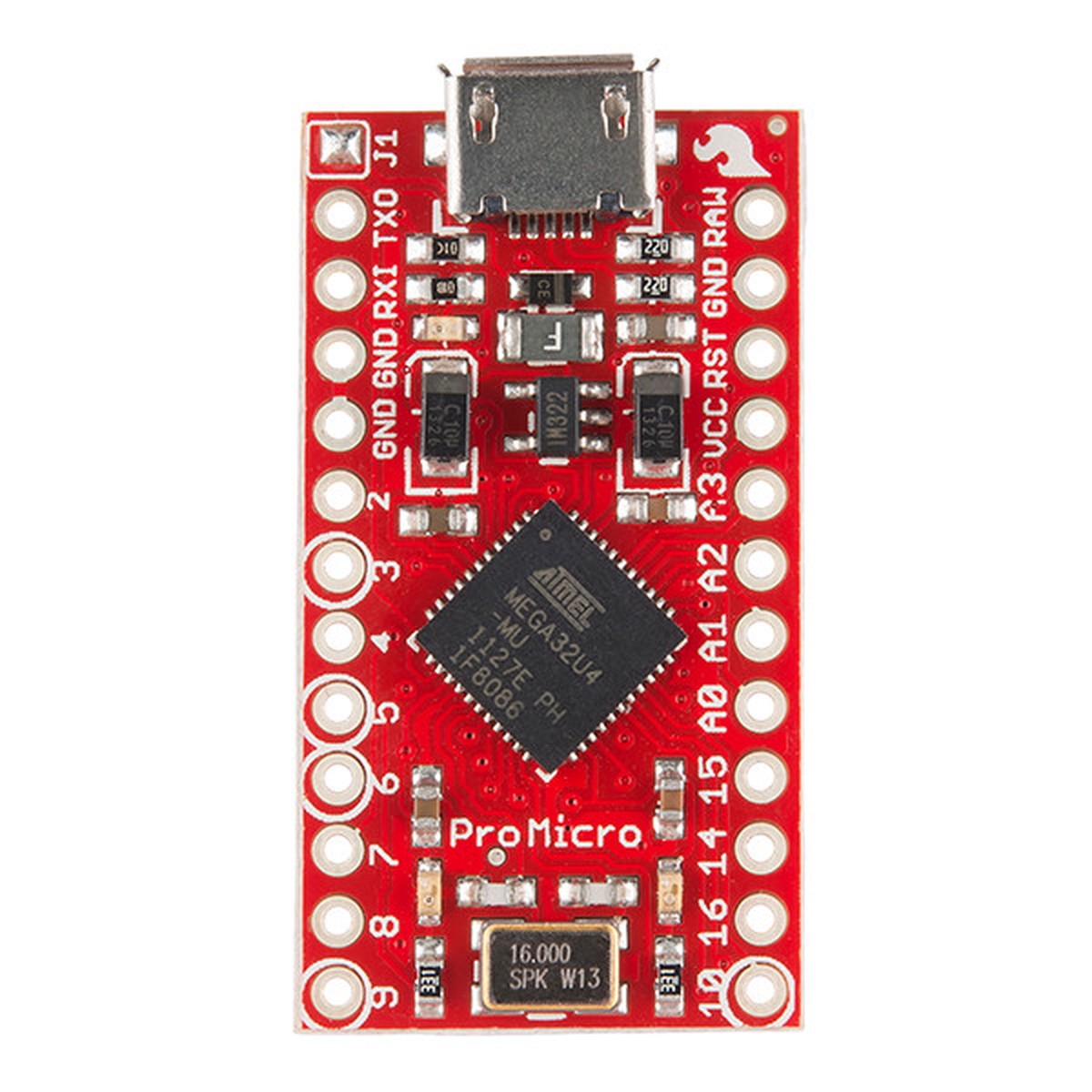

Pro Micro 5V 16MHz ATmega32U4 SparkFun

$29.99 $23.99

  • Shipping Icon
    Free
    Shipping
  • Shipping Icon
    Safe
    Payment
  • Shipping Icon
    Best
    Services
Categories :
  • Electrical
  • The Pro Micro is similar to the Pro Mini except with an ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add USB connectivity on-board and do away with bulky external USB interface.
    This tiny little board does all of the neat-o Arduino tricks that you’re familiar with: 9 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you’re supplying unregulated power to the board, be sure to connect to the “RAW” pin on not VCC.
    Key Features:

    ATmega32U4 running at 5V/16MHz
    Supported under Arduino IDE v1.0.1
    On-Board micro-USB connector for programming
    9 x 10-bit ADC pins
    12 x Digital I/Os (5 are PWM capable)
    Rx and Tx Hardware Serial Connections
    Small Form Factor (1.3×0.7″)
    3.3V to 12VDC (If you are supplying unregulated power to the board, be sure to connect to the ‘RAW’ pin on not VCC)

    Relevant Resources:

    Schematic
    Eagle Files
    Hookup Guide
    Graphical Datasheet
    Datasheet(ATmega32U4)
    Firmware Note
    Arduino Addon Files
    Arduino Addon Files (IDE 1.5+)
    GitHub(Design Files)
