Lutron QSWE-5BRLN-AW

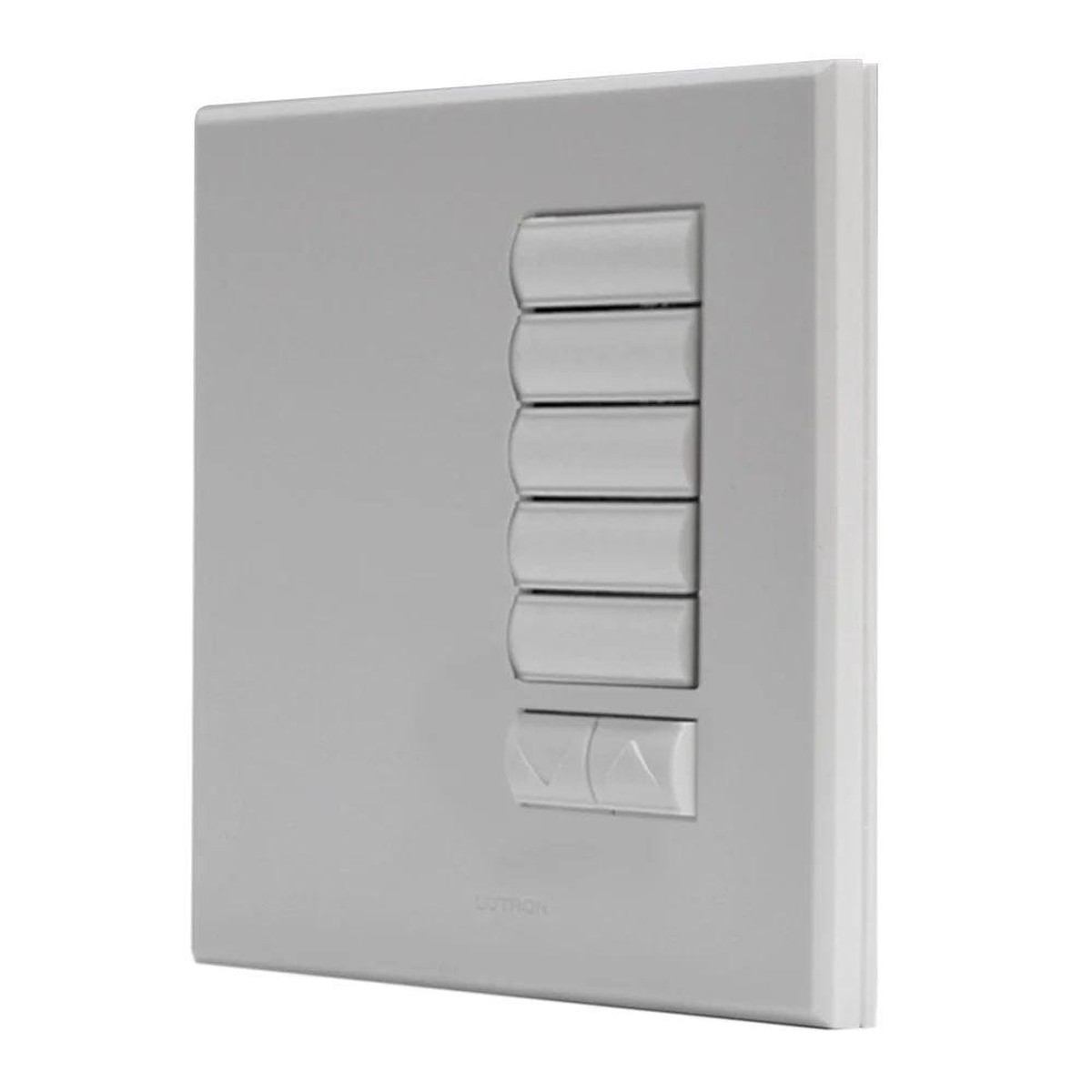

Lutron QS ‘See Touch’ Wallstation 5 Button with Master Up & Down Arctic White

Lutron European seeTouch QS 5 Button Raise/Lower Wallstation Features
– Lutron European seeTouch QS 5-Button Wallstation has 5 buttons plus Raise and Lower buttons for lighting and shading control and 2 contact closure input connections
– Often used to select 4 light scenes and All Off plus master dim up and down
– Use with Lutron Grafik Eye QS light scene and shading controllers
– Power up to 3 seeTouch QS wallstations directly off 1 Lutron Grafik Eye QS unit. To power 12 additional Wallstations use Auxiliary Power Supply – TU240-15DC-9-BL
– Backlit buttons with optional engraving make it easy to find and operate the Wallstation in low light conditions
– Optional button engraving is angled up to the eye for easy reading
– Non-Insert Frame version

Light Control Features
– Recalls preset light levels for scenes (1 – 4 and All Off; 5 – 11 and All Off; 9 – 16 and All Off)
– Each button will toggle a zone or a group of zones
– Master raise/lower brightens or dims all lighting in the last selected light scene

Contact Closure Features
– Receives up to two contact closure inputs via a connector on the back of the seeTouch QS wallstation
– When keypad is programmed as scene or zone toggle, input 1 closure will perform the top button action, and input 2 closure will perform the bottom button action
– When keypad is programmed as a partition control, input 1 controls the partition programmed to the top button (closure = close partition; opening = open partition) and input 2 controls the partition programmed to the bottom button (closure = close partition; opening = open partition)

Sivoia QS Shade Control Features
– Used to control multiple groups of shades independently from a single-gang keypad (e.g., a window with a sheer shade and a blackout shade)
– Pressing the Open (or Close) button once will cause the window treatments to move to their fully open (or closed) position. Tap any button (regardless of function) to stop a shade that is in motion
– Master raises/lower opens and closes all assigned shades in the last selected scene
