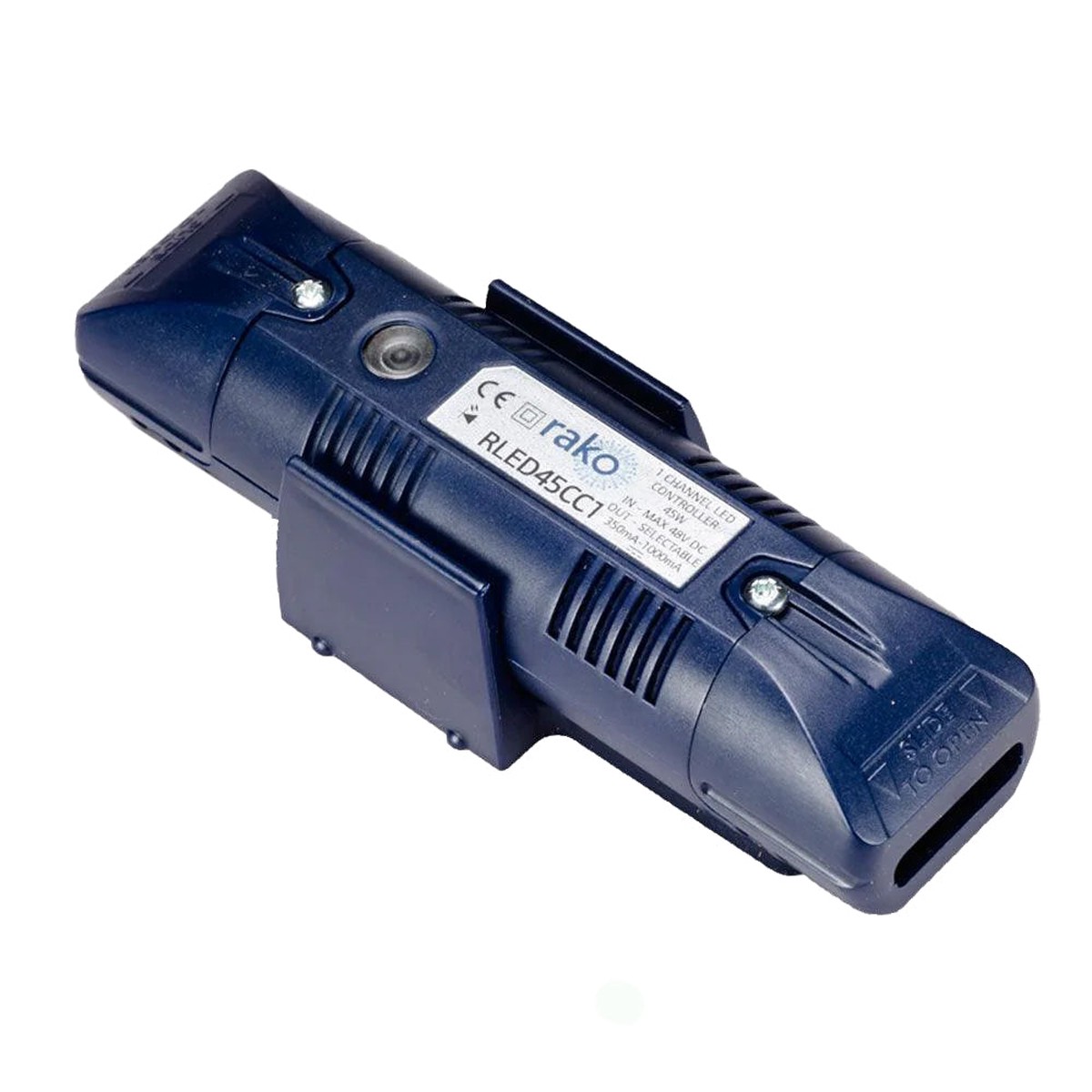

RAKO RLED45CC1
RAKO Single Channel 45W LED Driver

Designed to fit through a ceiling cut-out of 50mm diameter or greater the RLED45CC1 is fed from a suitable DC power supply to provide an adequate forward voltage. The RAPSU48 is recommended. The module is connected in-line before the first fitting and can control up to 13 LEDs in series (note: some fittings may use multiple LEDs, if in doubt refer to Rako’s technical department) with a maximum wattage of 45W.

Programmed using either an RCM RF wallplate or the RASOFT software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory. The RLED45CC1 dimmer can be controlled from any Rako transmitter such as RCM wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.

For more information on dimming LEDs refer to Rako’s application sheet Controlling LED Lighting With Rako Dimmers and Modules’.
