RAKO WCM-070

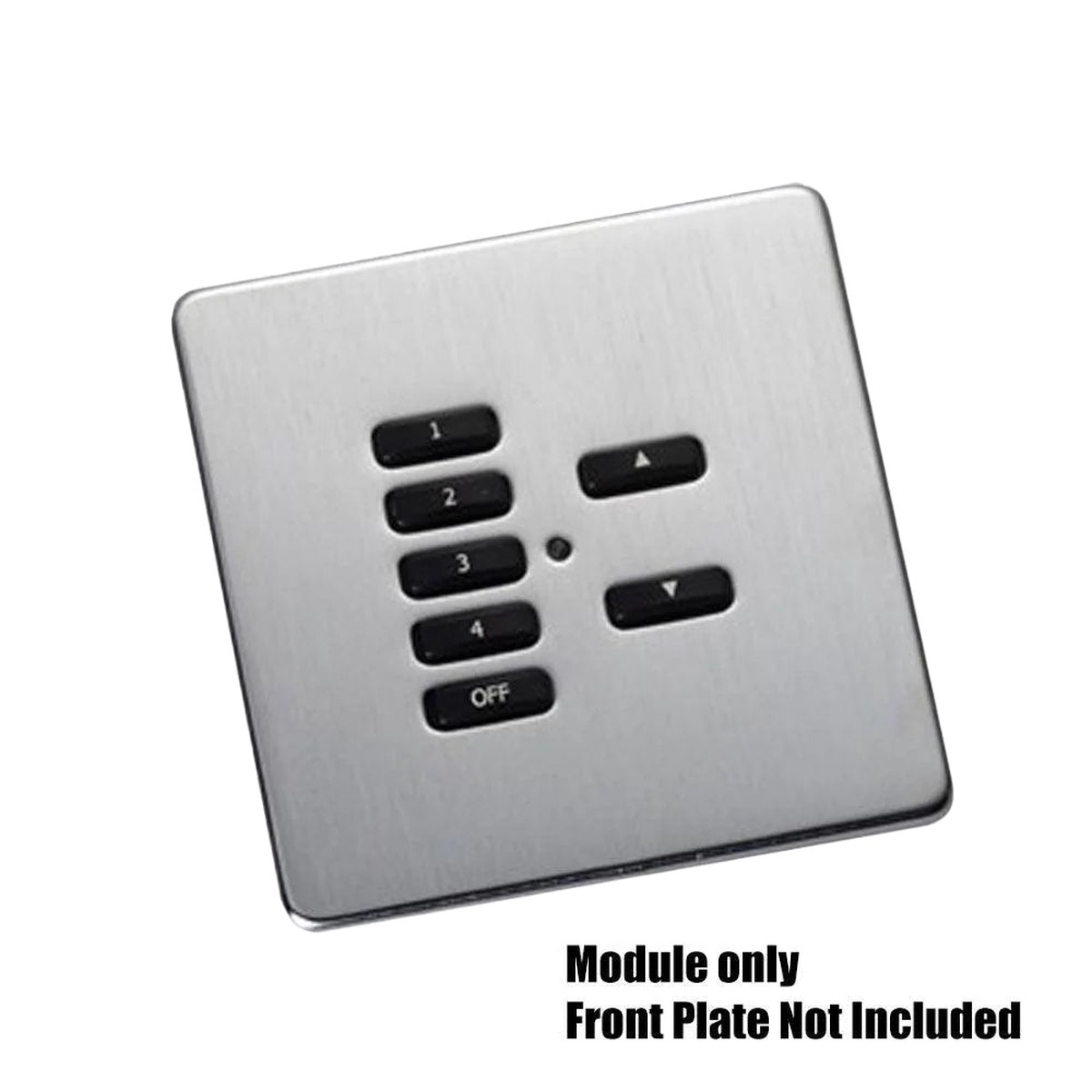

Rako Wired 7 Button Electronic Controller (requires face plate).

The RAKO WCM-070 connects to the RACOM wired CAT5 network pre configured for 4 scenes, off, raise & lower.

Product Overview
– A hard wired 7 button push button control module that has several fixing options.
– Based upon the widely used 50x50mm switch plate accessory standard.
– Rako flat plate and screwless switch plate accessories available.

Ultimate Control
– The Rako WCM-070 push button control module comes pre-configured for selecting 4 scenes, off and master raise & lower. Each button is complete with a blue LED indicator and day-night etching.
– Easy connection to the RACOM wired CAT5 network is by a removable 8 way punch down module that can be installed at first fix stage prior to the push button front control module. This protects the control module from being damaged while building works are being finished.
– The module is suitable for installation in any of the standard Rako fixing solutions and is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement.
– Using RASOFT programming software it is possible to configure each button individually to carry out a number of different tasks, for example:

– Scene selection
– Scene toggle on/off
– Channel toggle on/off
– Master raise & lower
– Channel raise & lower
– Macro start/stop
– Local room or global off

– LED indicators are individually programmable to follow the logic of the above functions. Custom button laser engraving is available to match.

Technical data
– Dimensions: 50x50x36mm
– Input supply: 12-18vdc supply from RACOM CAT5 control network
– Fixing: Flush mounting into standard single gang back box, minimum 35mm deep.
– Weight: 50g

Climate range:
– Temperature +2C to +40C
– Humidity +5% – 90% non condensing

– Cable type: UTP CAT5e
– Terminal type: 8 way punch down

Standards:
– EMC – EN 5001-1 :1992
– Immunity – EN 50082-1 :1997

– Communication: Rakom CANbus network

Memory:
– Flash memory (non volatile)
– Firmware upgrades via RASOFT
– programming software
