Rako RMTPILL
Rako Lighting Hand Held Remote Control Unit

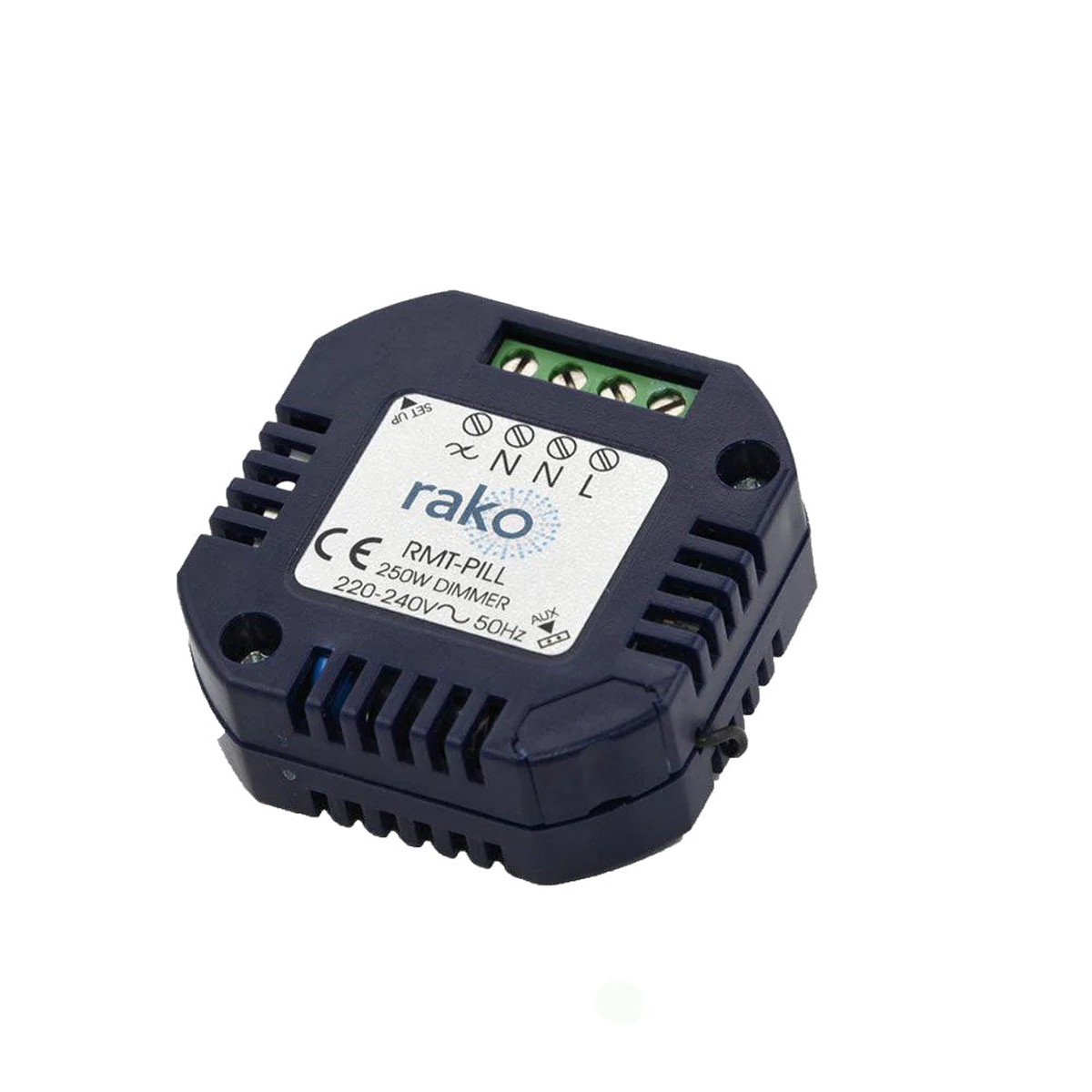

A compact 250w RF dimmer designed to be located in a standard UK or European backbox. The neutral less design allows for retrofit connection in standard wiring situations.

Trailing edge technology for quiet reliable dimming of tungsten GLS and tungsten halogen GU10 style lamps. Controlled from any Rako RAKOM device or simple contact closure input using a momentary push switch.

Designed to fit in a standard UK or European back-box the RMT-PILL requires no neutral yet has full RF receiving capability and the same programmability as other Rako system components. The “PILL” dimmer is useful for installations where fitting a standard Rako dimmer is difficult
e.g. retro-fitting to control wall-lights.

The “PILL” dimmer can be controlled from any Rako transmitter such as RCP wallpanels, RAH hand helds, timeclocks and forms an integral part of a Rako scene-set system. The “PILL” dimmer can also be controlled from a simple momentary action switch giving N/OFF/Raise/Lower control allowing cost effective extra panels.

Control from simple panels still allows the dimmer to be controlled as part of an overall house control system with master Off and macro command response.

Dimensions : 50x50x19.5mm
Input supply : 230V AC +/-10% 50Hz
Weight : 46g
Housing : UL V0 material
Climate range : Temperature +2C to +40C
Humidity : +5% to 95% non condensing
Connections : 2 way screw terminal for mains power Molex 2 pin socket for auxilary switch
Auto resetting over current protection
Auto thermal shutdown
Voltage surge protection

Load types
Incandescent mains voltage lamps
Tungsten halogen GU10 lamps
Not suitable for low voltage lamps
minimum load 60w
maximum load 250w

Terminal sizes 1.5mm2 – Stranded / 2.5mm2 – Solid
Standards EMC – EN 5001-1 :1992
Immunity – EN 50082-1 :1997
Communication Rakom coded fm radio, 433.9MHz
Memory Flash memory (non volatile)
