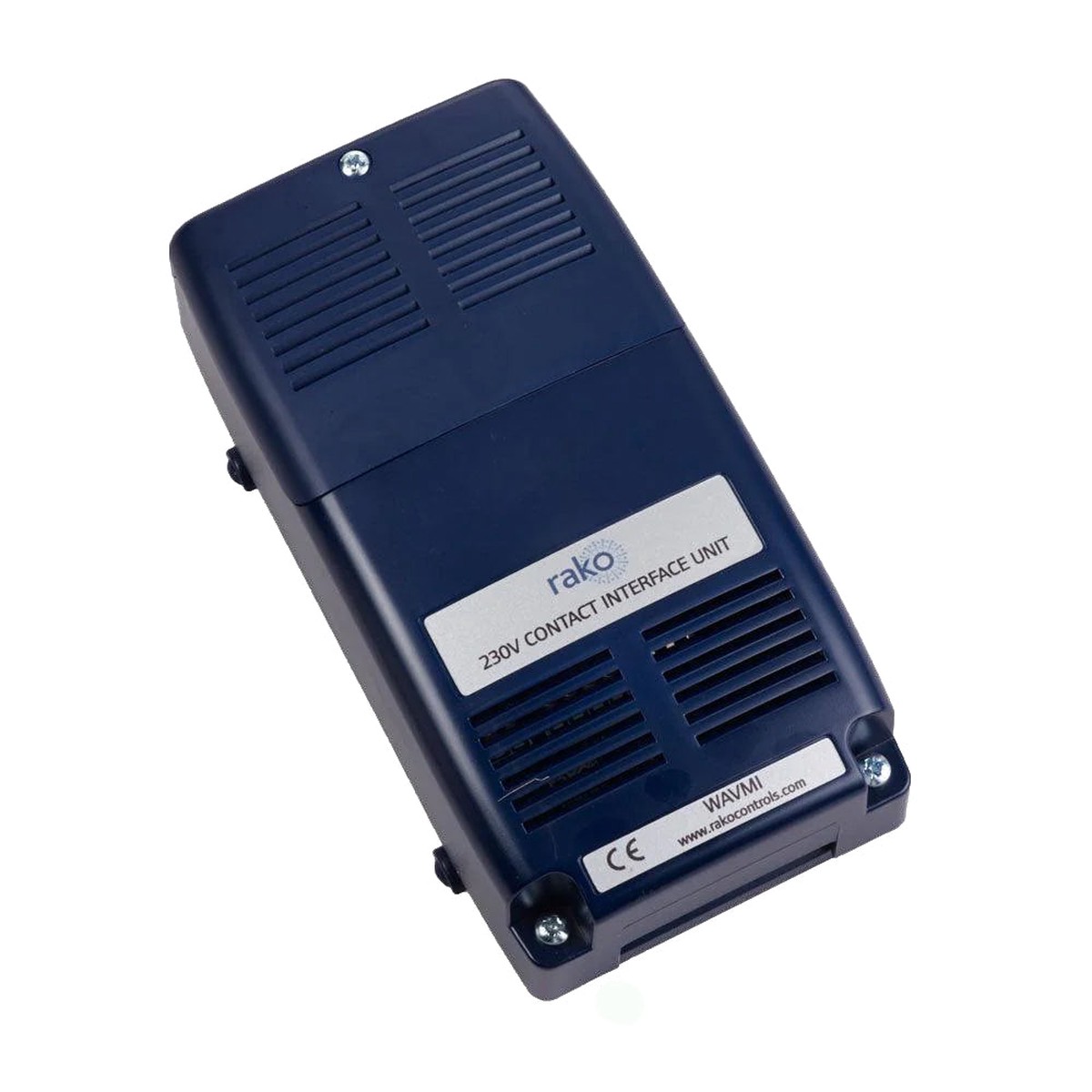

Rako WAVMI

The WAVMI is fitted with 5 sets of screw terminals to provide both a 240V L,N +E supply as well as accepting in a 240V switched line simplifying wiring to devices such as PIRs. The return switched line then acts as an input on the Rako Rakom wired network in a similar way to pressing a button on a keypad. As per a keypad message, a trigger from the WAVMI can recall a direct lighting scene or be mapped to start a macro event in a WTC-Bridge.

Connection to the Rakom wired network can be via the RJ11 lead, plugging into a RAKLink or RAKStar unit. Alternatively a WPCon or WPConC unit can be used as a remote plug in connection.
