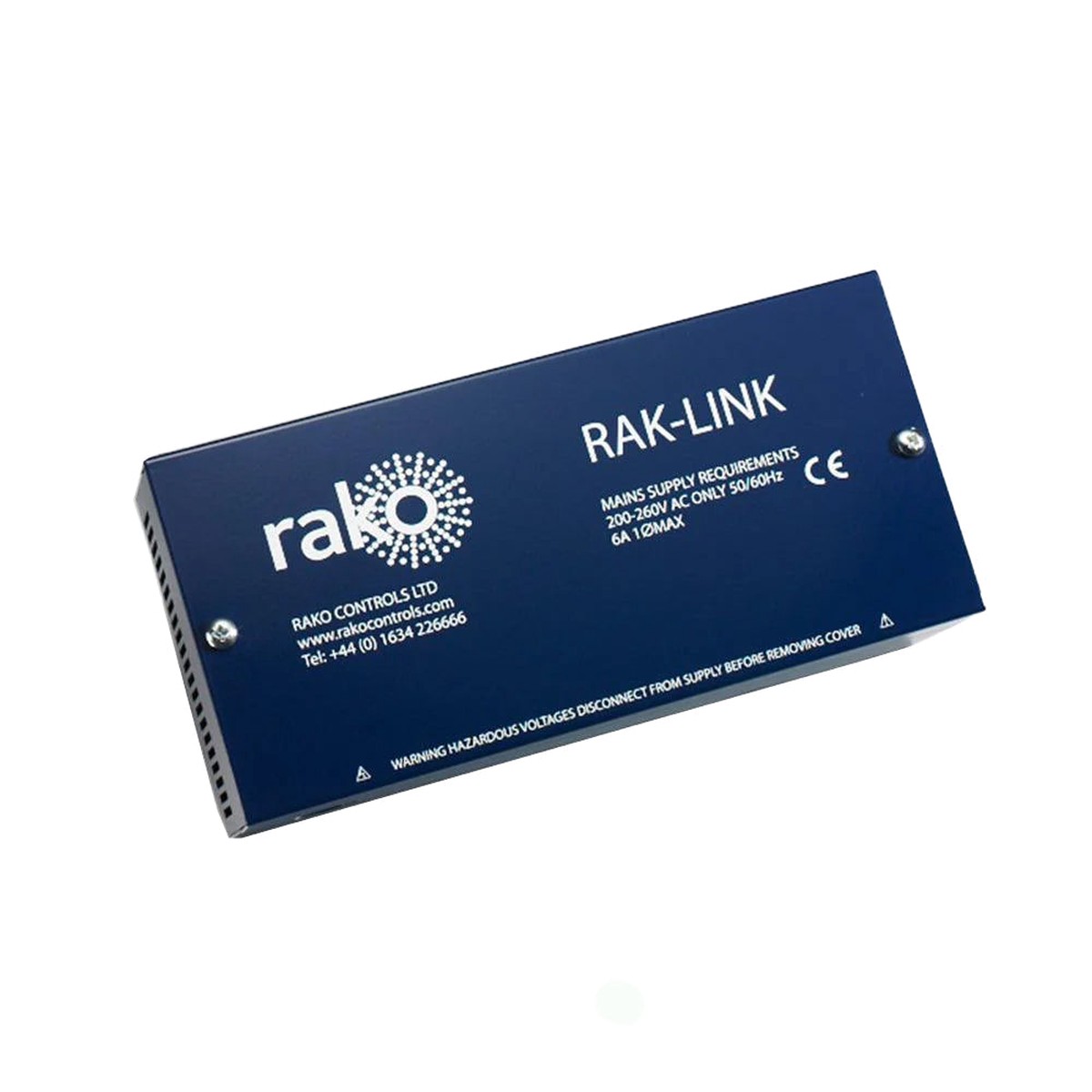

RAKO RAK-LINK
Wired connection unit for use with RAK-4 system complete with power supply for wired CAT-5 panels.

Rako RAK-LINK Overview
– A wired connection unit for use with RAK4 dimmer units, with a power supply for wired CAT5 products.
– The power supply has the capability of powering 10 RAKOM devices, up to 200m over standard CAT5e cable.

Control Links
– The RAK-LINK provides an isolated link between the RAK dimmer units and wired RAKOM products. The unit also includes a power supply for the RAKOM network.
– Connection for the CAT5 is by 8 way punch down terminals. This allows for a daisy chain configuration of the RAKOM wired network, where a star or home-run configuration is required the use of the RAK-STAR unit is also required.
– A programming socket within the unit allows system programming using the RASOFT software suite.

Technical data

Dimensions: 120x253x80mm

Input supply:
– 200-260V AC 50/60Hz
– 6A Type B MCB protection required

Supply output:
– 15vdc 3A for RACOM CAT5 control network

Housing: Powder coated galvanised steel
Weight: 2.0Kg

Climate range:
– Temperature +2C to +40C
– Humidity +5% – 90% non condensing

Rakom cable type: UTP CAT5e
Rakom terminals: 8 way punch down

Standards:
– EMC – EN 5001-1 :1992
– Immunity – EN 50082-1 :1997

Communication: Rakom CANbus network

Memory:
– Flash memory (non volatile)
– Firmware upgrades via RASOFT programming software
