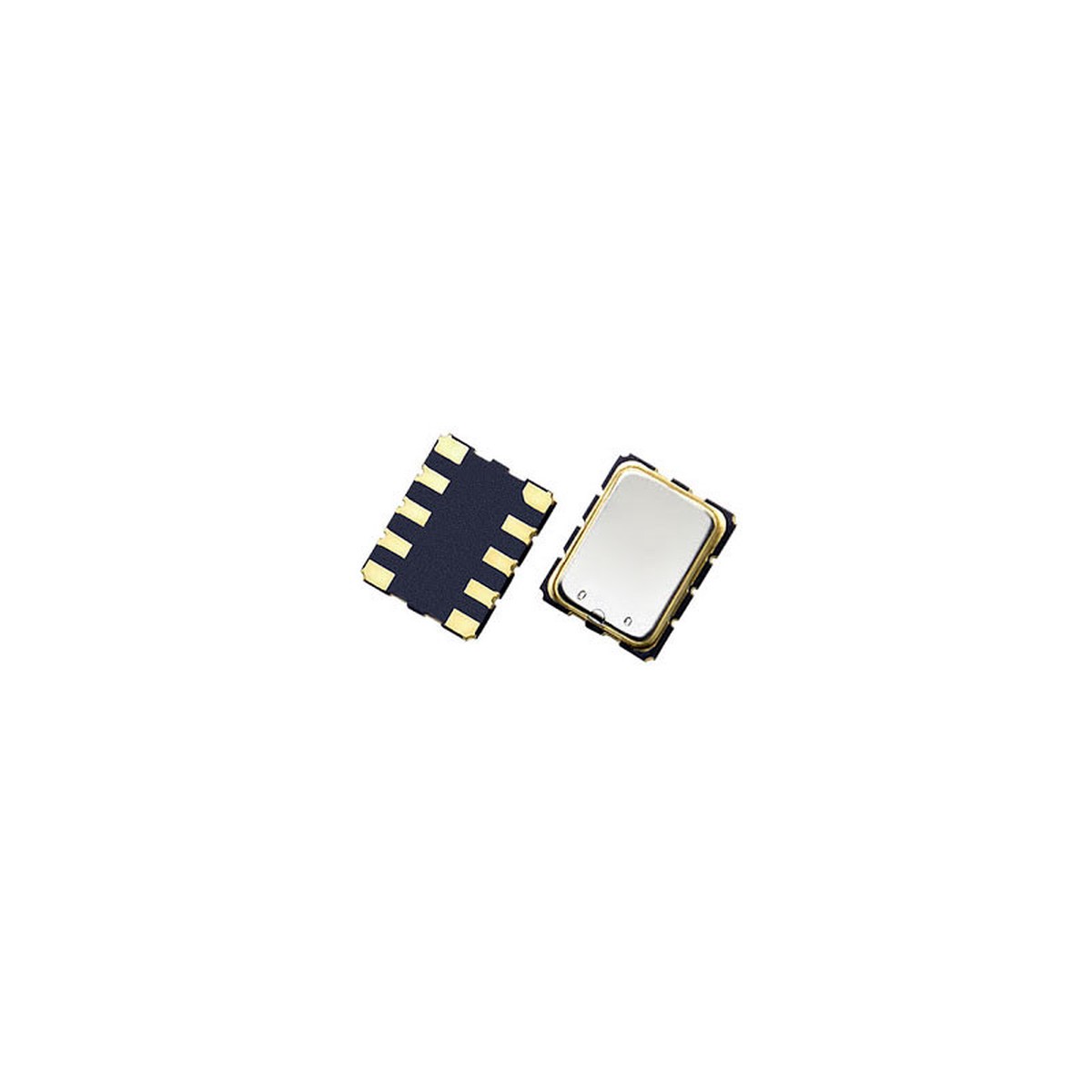

RX8130CE:B3 – 3V Real-Time Clock IC I2C-Bus Battery Charge Control Function

$15.00 $8.00

  • Shipping Icon
    Free
    Shipping
  • Shipping Icon
    Safe
    Payment
  • Shipping Icon
    Best
    Services
Categories :
  • Electrical
  • Built in frequency adjusted 32.768 kHz crystal unit
    The VDD voltage is monitored and it switches to the backup power supply by the automatic operation. The switch voltage to the backup power supply. 1.25V (Min.). Even if the main power supply voltage is decreased, the current flow from the backup power supply is prevented. When the main power is supplied, reset output is released.The release voltage is selected by the register. (2.80V / 2.75V). Delay time from the voltage rise detection is 60ms Typ.
    Key Features

    Built in frequency adjusted 32.768 kHz crystal unit

    Interface Type: I2C-Bus interface

    Interface voltage range: 1.6V to 5.5V

    Wide voltage for time keeping: 1.1V to 5.5V

    Low backup current: 300 nA ( Typ. ) / 3 V

    Auto power switching function:Switchover by main power supply monitor.

    Backup battery charge control function: For the rechargeable lithium batteries.

    Reset functions with a delay:Detect a main power supply and remove the reset.

    The various function include full calendar, alarm, timer, etc.

    Epson prepared Linux driver for development
    https://www5.epsondevice.com/en/information/support/linux_rtc/
    The registered trademark Linux is used pursuant to a sublicense from LMI(Linux Mark Institute)

    * The I2C-BUS is a trademark of NXP Semiconductors.

    Resources
    Datasheet
