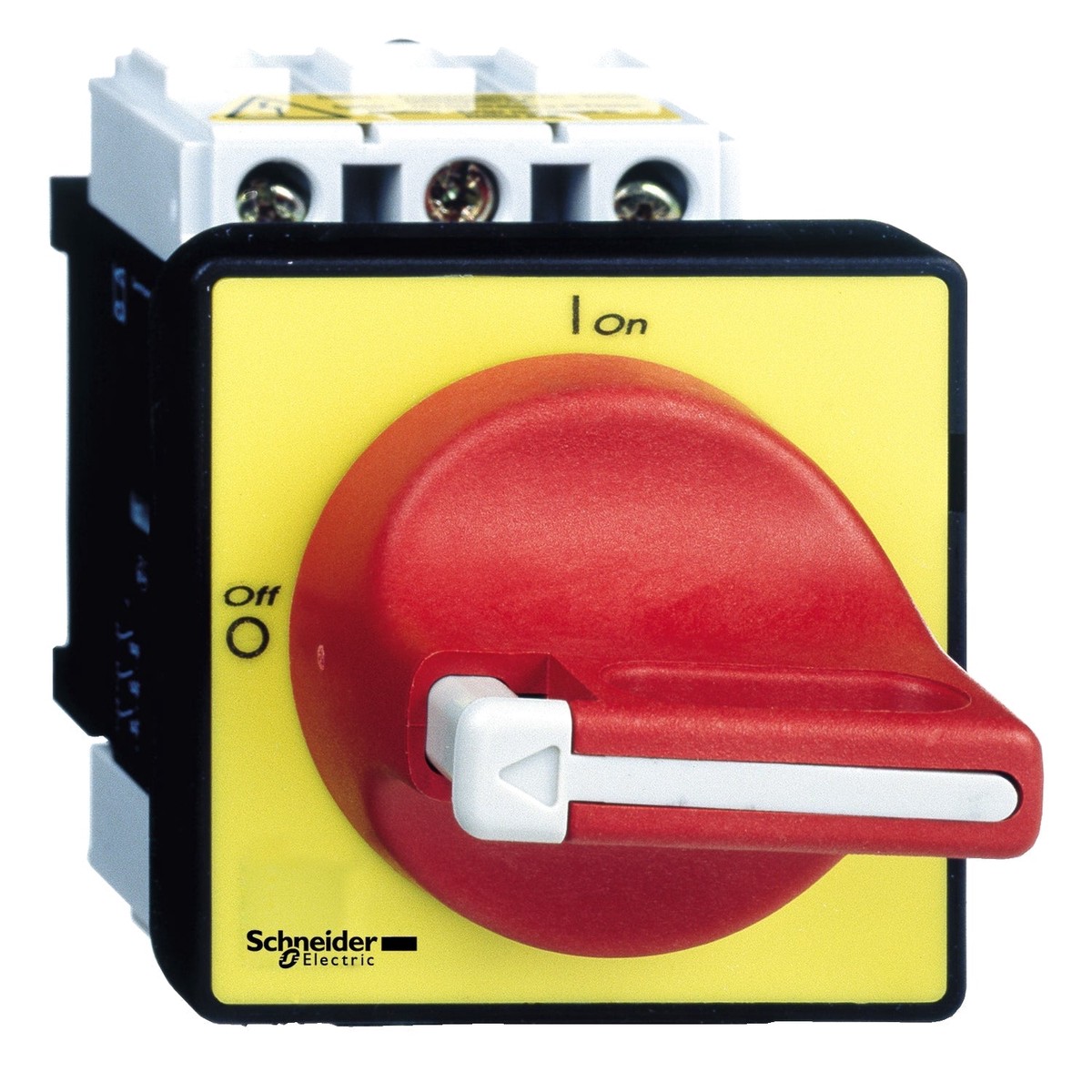

The Schneider Electric VCD1 is a TeSys Vario 3-pole emergency stop disconnector rated at 32 A, designed for door-mounting in industrial control panels and machinery where a clearly identified isolation point is required.

• Poles and contacts: 3-pole (3P), 3 NO
• Conventional free air thermal current [Ith]: 32 A
• Rated operational voltage [Ue]: 690 V AC, 50/60 Hz
• Rated operational current [Ie]: 21.8 A (AC-23) at 400 V
• Rated operational power: 15 kW at 690 V (AC-23A); 11 kW at 400415 V (AC-23A); 7.5 kW at 400415 V (AC-3)
• Rated conditional short-circuit current: 10 kA at 400 V with 35 A aM or 35 A gG fuse
• Rated impulse withstand voltage [Uimp]: 8 kV
• Mounting: Door-mount via 22.5 mm aperture; direct rotary handle
• Control: Rotary handle, red with yellow front plate; padlockable with 13 padlocks (48 mm shackle); marked 01
• Degree of protection: IP20 (IEC 60529) and IP65
• Operating temperature: 20 to +50 C
• Mechanical durability: 100,000 cycles; electrical durability: 100,000 cycles (AC-21), 30,000 cycles (DC-15)
• Terminal connection: Screw terminals, 10 mm rigid cable / 6 mm flexible cable with cable end; tightening torque 2.1 Nm
• Standards and certifications: IEC 60947-3, UL, CSA, CCC, UKCA, GL
