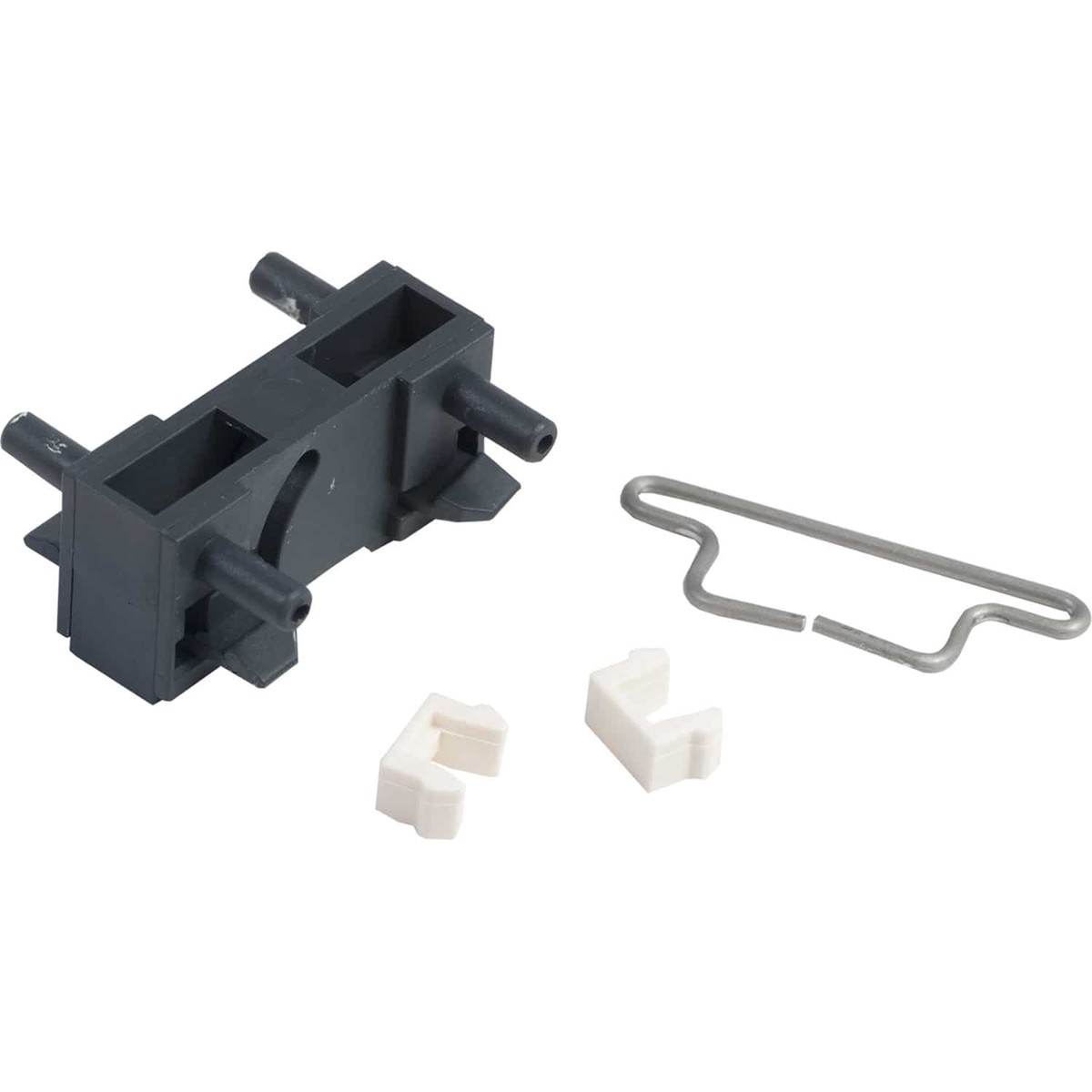

The Schneider Electric LAD9V2 is a mechanical interlock for TeSys D-LINE contactors, designed to ensure safe directional control and source changeover switching in 3-pole and 4-pole configurations. It prevents simultaneous energization of two contactors, enabling reliable reversing and transfer switching applications. Compatible with the full TeSys D contactor range up to LC1D38 and LC1DT40.

Technical specifications:

• Commercial reference: LAD9V2
• Manufacturer: Schneider Electric
• EAN: 3389110111699
• Series / range: TeSys Deca / TeSys D
• Product type: Mechanical interlock
• Short device name: LAD9
• Accessory category: Interlock accessory
• Interlock type: Mechanical
• Number of poles: 3P / 4P
• Circuit type: Direction reversal / Source changeover
• Compatible contactor range: TeSys D contactors
• Compatible products: LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38, LC1DT20, LC1DT25, LC1DT32, LC1DT40
• Product weight: 0.04 kg
• Package dimensions (unit): 11.1 x 8.0 x 2.0 cm
• Package weight (unit): 10 g
• Warranty: 18 months

Features and benefits:

• Prevents simultaneous closing of two contactors, eliminating phase short-circuit risk in reversing and changeover circuits
• Supports both direction-reversal and source-changeover electrical circuit configurations
• Compatible with a wide range of TeSys D contactors from LC1D09 up to LC1DT40
• Compact and lightweight design (0.04 kg) for easy panel integration
• Compliant with IEC standards as part of the TeSys D-LINE accessory ecosystem

Applications:

• Motor reversing circuits in industrial machinery and conveyor systems
• Dual-source power supply changeover panels for critical loads
• Motor control centers requiring interlocked contactor pairs
• Pump and fan drives with forward/reverse control requirements

Compliant with IEC standards for low-voltage switchgear and controlgear accessories. Part of the Schneider Electric TeSys Deca / TeSys D range.

Also known as: Schneider LAD9V2, Schneider Electric LAD9V2, TeSys D mechanical interlock, contactor interlock accessory LAD9V2.
