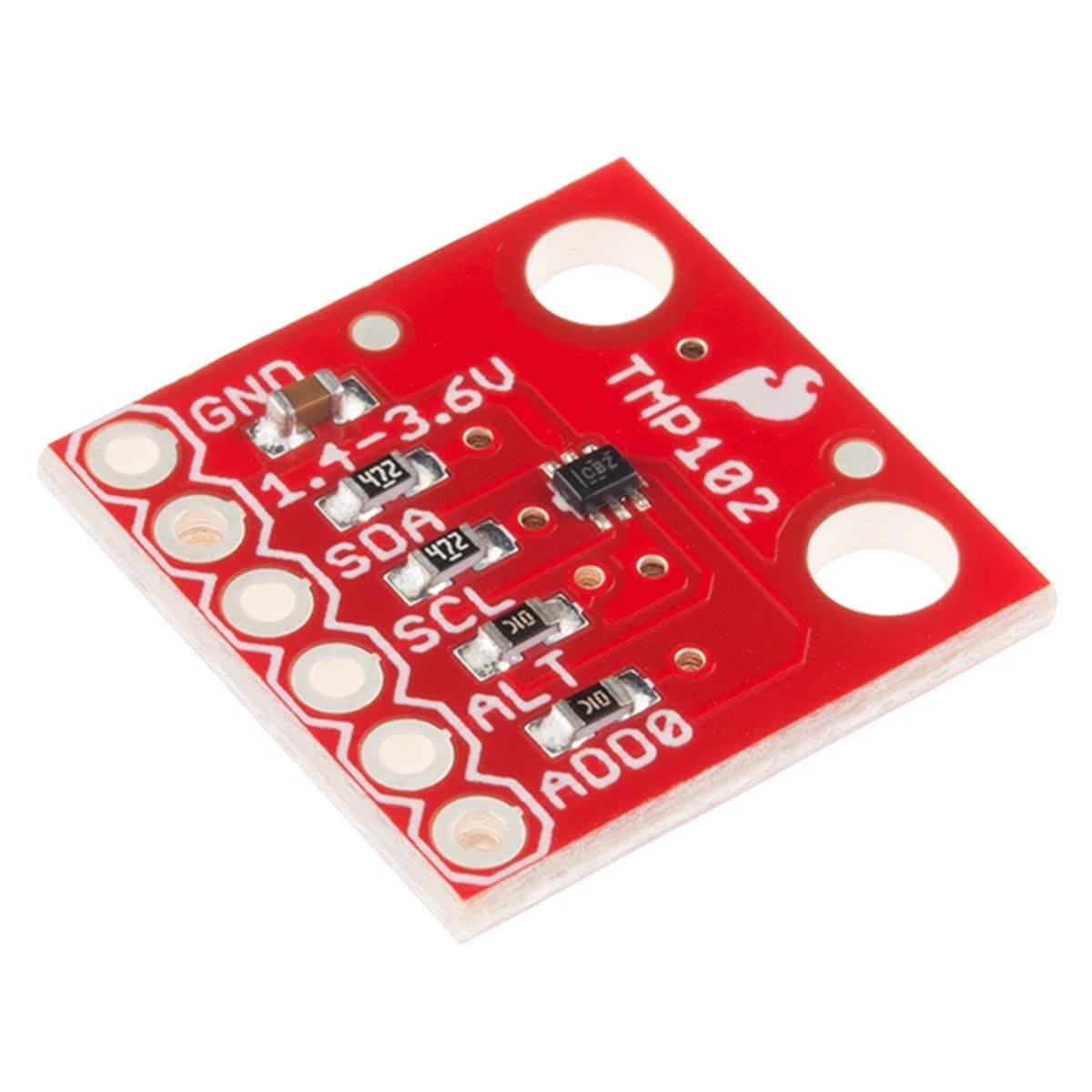

SEN-13314 – Digital Temperature Sensor Breakout – TMP102

$6.99 $5.59

  • Shipping Icon
    Free
    Shipping
  • Shipping Icon
    Safe
    Payment
  • Shipping Icon
    Best
    Services

Key Features:

Uses the I2C bus of the Arduino to communicate the temperature
Reads temperatures to a resolution of 0.0625 degree C
Built-in 4.7k pull-up resistors for I2C communications and runs from 1.4V to 3.6V
I2C communication uses an open drain signaling
No need to use level shifting
Uses the I2C interface
12-bit, 0.0625 degree C resolution
Typical temperature accuracy of 0.5 degree C
3.3V sensor
Supports up to four TMP102 sensors on the I2C bus at a time

Relevant Resources:

Get Started Guide
Schematic
Eagle Files
Hookup Guide
Datasheet(TMP102)
Arduino Library
GitHub
