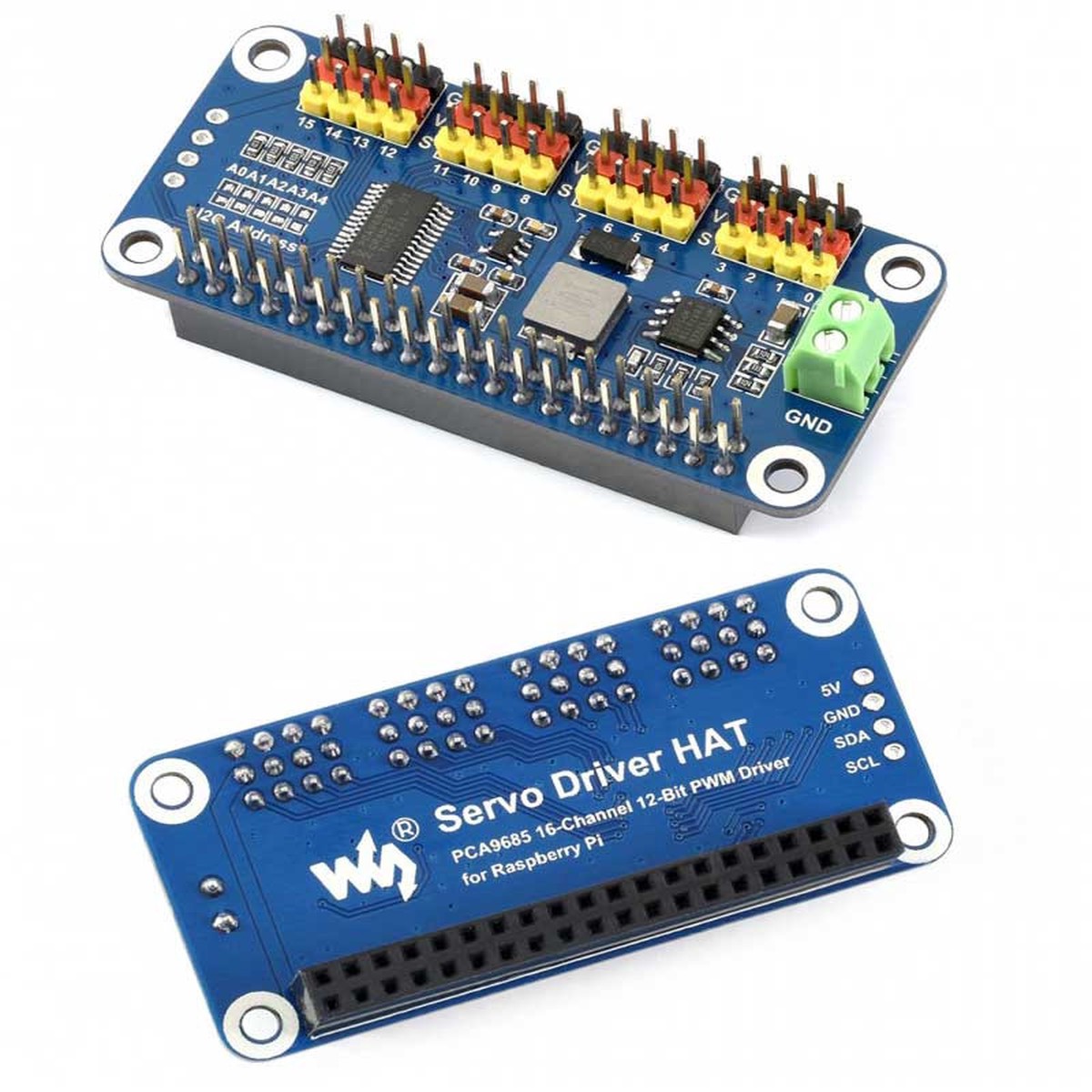

The Raspberry Pi Servo/PWM Expansion Board is compatible with Raspberry Pi Zero, Zero W, Zero WH, 2B, 3B, and 3B+ models. It can be I2C controlled using only 2 pins and provides up to 16-channel servo/PWM outputs with 12-bit resolution for each channel (4096 scales). The board integrates a 5V regulator with up to 3A output current, allowing it to be powered from the battery through the VIN terminal. It supports standard servos such as SG90, MG90S, MG996R, and more. The expansion board also includes reserved I2C control pins, enabling seamless integration with other control boards. For added convenience, the board comes with development resources and a manual, including Python examples for Bluetooth/WiFi remote control.
Features

Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
I2C controlled, using only 2 pins
Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
Integrates 5V regulator, up to 3A output current, can be powered from the battery through VIN terminal
Standard servo interface supports commonly used servo such as SG90, MG90S, MG996R, etc.
Reserved I2C control pins, allows working with other control boards
Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)

Power supply

5V (Pi connector) OR 6V~12V (VIN terminal)

Servo voltage

5V

Logic voltage

3.3V

Driver

PCA9685

Control Interface

I2C

Dimension

65x30mm

Mounting hole size

3.0mm

Resources
User Manual
Demo Code
Waveshare Wiki
