Manrose XF150T

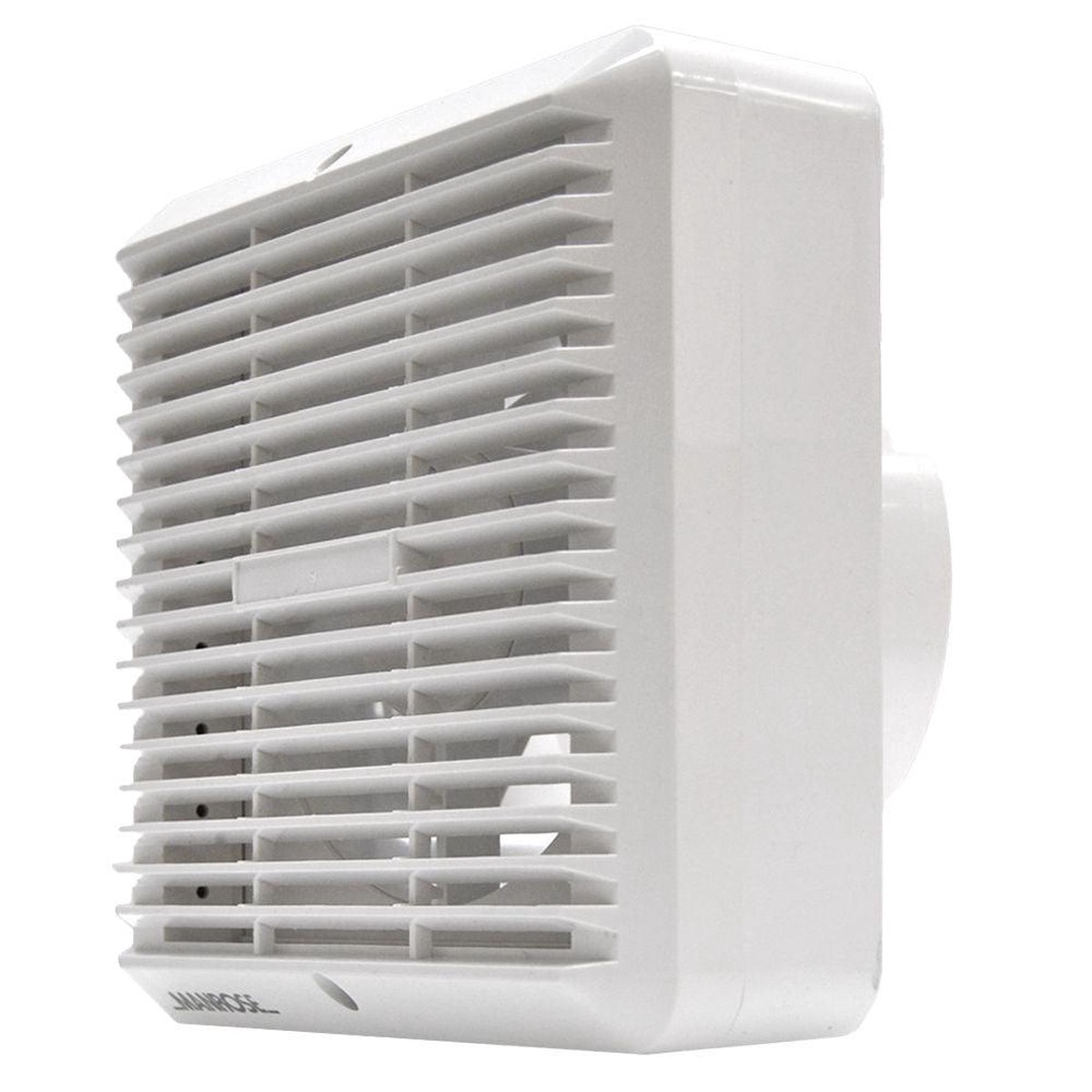

Manrose 6 Inch Extractor Fan with Timer

Specification:
Air Extraction m3/hr : 230m3/hr
Air Extraction L/s : 64 L/s
Noise : 40dB(A)
Watts : 17W

Manrose XF150 Extractor Fan Range Overview
The Manrose range of 150mm (6″) Kitchen Fans comprises quiet, efficient, axial flow fans for wall or ceiling mounting. Designed for easy installation, attractively styled in high gloss ABS thermoplastics for modern appearance and ease of cleaning and incorporating the latest technology and design. The Manrose 150 Series is ideally suited for domestic and commercial applications including kitchens, utility rooms, restaurants, offices and shops.

Construction
These fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and finish.

Electrical
220-240V ~ A.C. 50Hz ns. Single phase consuming 25 watts in the 150 Series These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan should not be accessible to a person using either the shower or the bath and mounted a minimum of 1.8 metres from the floor.

Motor
Single phase induction motor with pre-oiled bearings fitted for a long maintenance free life and protected by a thermal fuse.

Installation
XF150 Series. These fans are designed to be fitted in either a wall or a ceiling (Pullcord models wall mounting only). A wall fixing kit is available separately.

Performance
XF150 Series extract rate 230,?/hr, 64 litres per second.

Additional Data
Maximum pressure: 50 p.a. Fan speed: 2400 r.p.m.
Sound volume: 40.0 dB(A) Maximum operating temperature 40?C.
