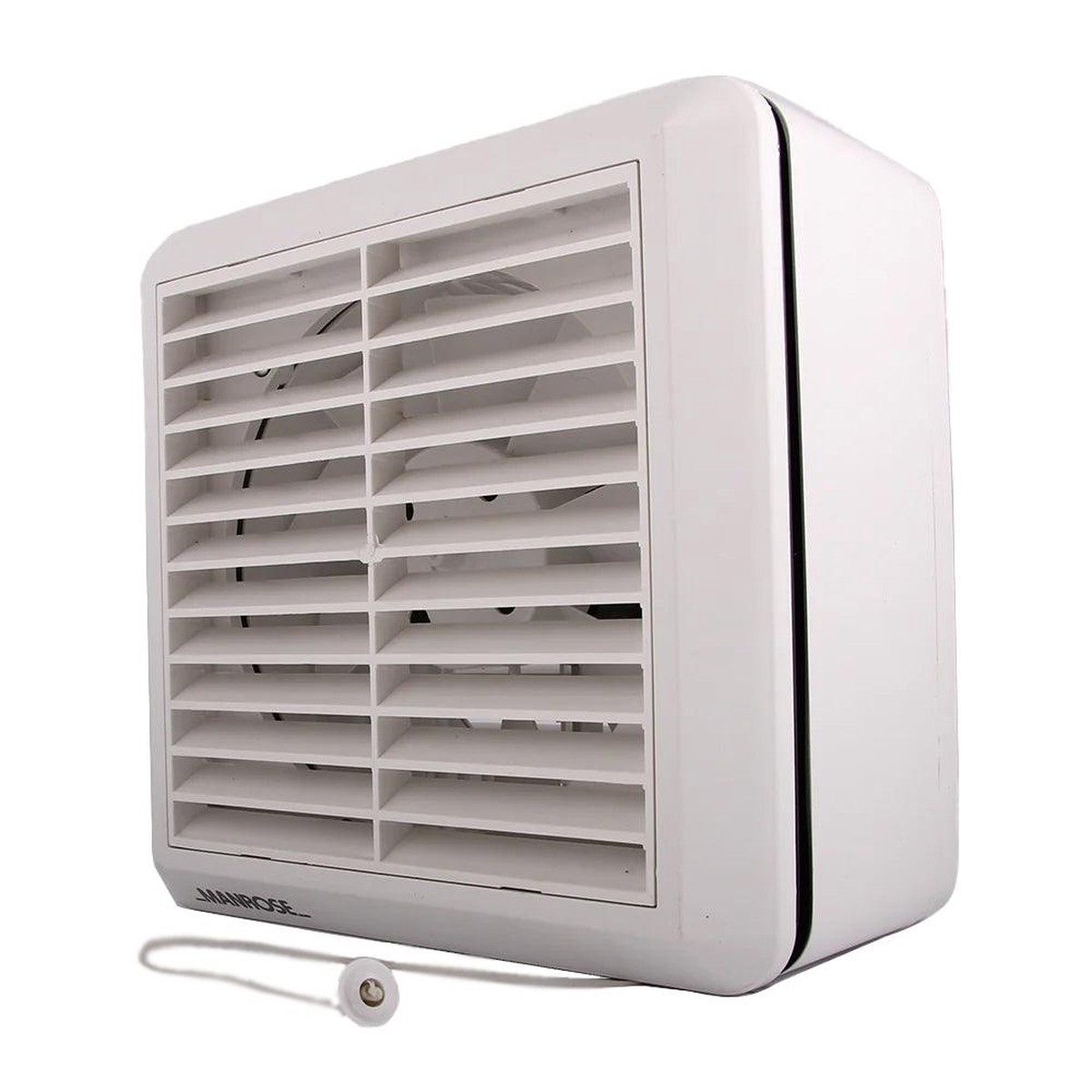

Manrose WF150P
Manrose Six Inch Window Bathroom Extractor Fan with Pullcord

Specification:
Air Extraction m3/hr : 230m3/hr
Air Extraction L/s : 64 L/s
Noise : 41dB(A)
Watts : 25W

Dimensions:
203mm x 203mm
Depth: 95mm

Manrose WF150 Extractor Fans
WF150 six inch window fan is designed for window mounting through a standard six inch diameter hole in 4mm – 10mm thick glass.It incorporates the latest technology and design and offers a choice of switching options. Attractively styled in high gloss ABS thermoplastics for modern appearance and ease of cleaning, designed for easy installation and can be wall or ceiling mounted.

There are several options available; Standard model for remote switching, integral Pullcord units, and Timer models which incorporate an electronic time delay switch. Humidistat Control models are also available which are designed to switch on the fan as the humidity rises in the bathroom and off as it drops. The body is moulded in impact resistant high gloss ABS thermoplastics for strength, durability and finish.

The WF150 is double insulated and does not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor.
