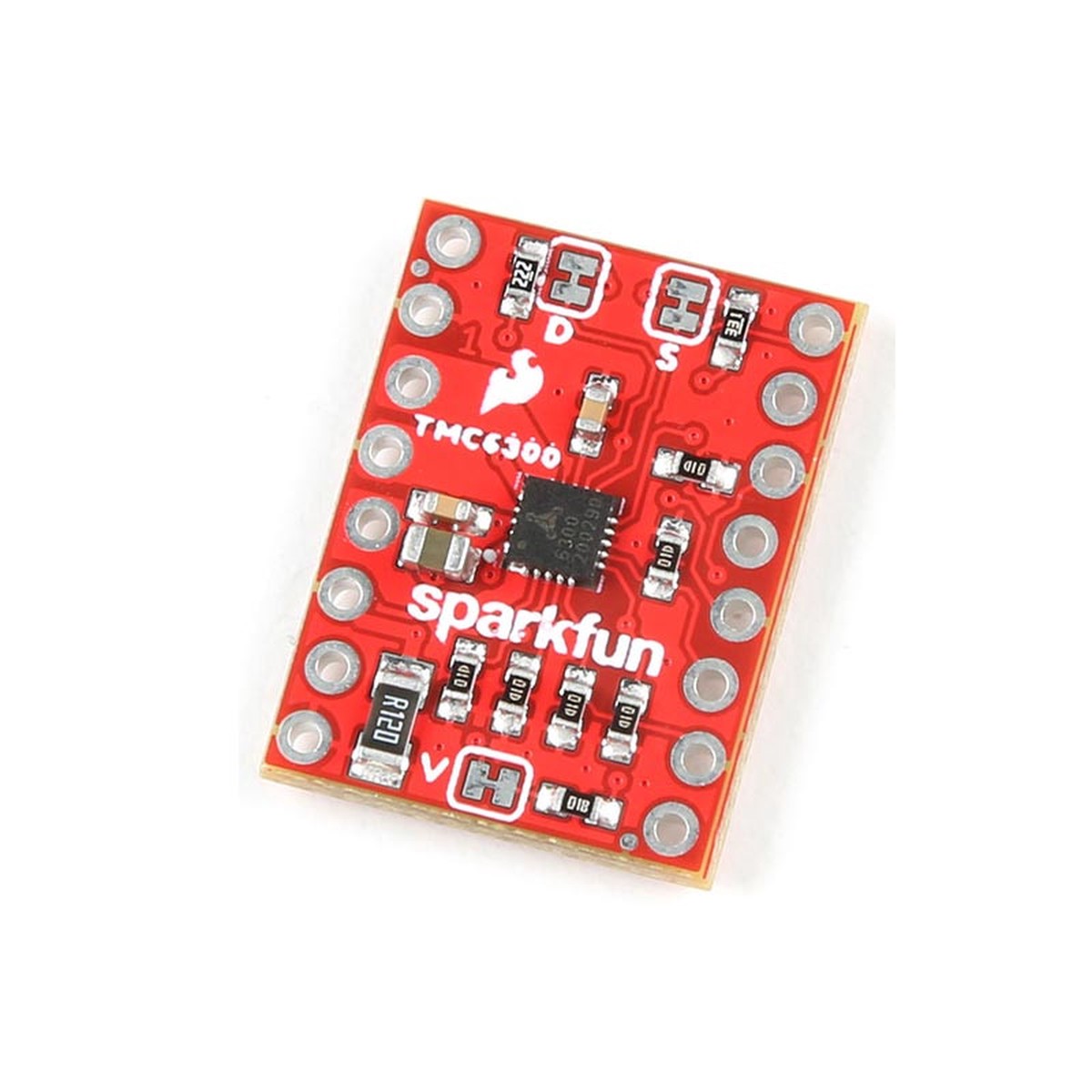

The SparkFun 3-Phase Brushless Motor Driver incorporates the TMC6300 from ADI + Trinamic, making it a robust and user-friendly driver for three-phase motors, specifically designed for our Brushless Gimbal Motor. It offers the capability to control any 3-phase BLDC or PMSM motor with a maximum total drive current of 2A (1.4ARMS). The driver allows separate high-side and low-side control of the three half-bridges, enabling precise management of each phase during motor commutation. Additionally, it includes safeguards against temperature variations and short circuits, along with a diagnostic output that signals any system faults. The TMC6300 operates with a regulated power output of 1.8V and can function with an input voltage as low as 2V, making it well-suited for low-power microcontroller and battery-powered designs. It can be powered by a minimum of two AA/NiMh cells or one to two Li-Ion cells.
Board Features

TMC6300 Motor Driver IC

Inputs:

VS/GND- Power(2-11V)
VCP- Charge Pump(for capacitor)
VIO- I/O Logic Level/Standby Control
High-side and Low-side MOSFET pairs

UH/UL(PWM Input)
VH/VL(PWM Input)
WH/WL(PWM Input)

Outputs:

SEN- Current sense

DIAG- Diagnostic

Power Output from the three half-bridges

U/V/W(Motor Phase)
