SparkFun GPS-RTK-SMA Kit: Unlock Unrivaled Precision for Your Positioning Projects
Are you seeking millimeter-level accuracy for your GPS applications? The SparkFun GPS-RTK-SMA Kit empowers you to achieve just that. Whether you’re developing autonomous vehicles, precision agriculture systems, or robotics platforms, this kit provides the tools to pinpoint your location with unmatched precision.
Harness the Power of RTK
GPS Real Time Kinematics (RTK) revolutionizes positioning accuracy, and the SparkFun GPS-RTK-SMA Kit places this cutting-edge technology at your fingertips. With the u-blox ZED-F9P module, you can achieve an astounding 10mm three-dimensional accuracy that’s about the width of your fingernail! Imagine the possibilities this opens up for your projects.

Key Features and Benefits:

ZED-F9P Module: This top-tier module delivers exceptional accuracy for both rover and base station operations.
Qwiic Connect System: Seamlessly integrate the kit into your existing setup without soldering, thanks to the convenient Qwiic system.
Rechargeable Backup Battery: Maintain module configuration and satellite data for up to two weeks, ensuring quick start-up and reduced time-to-first-fix.
Versatile Connectivity: Enjoy multiple communication ports, including USB-C, UART1, UART2, I2C, and SPI, for flexible integration.
Extensive Arduino Library: Effortlessly control and read data from the GPS-RTK-SMA using our comprehensive Arduino library.
Complete Kit: The kit includes the GNSS multiband antenna, ground plate, and reversible USB-A to C cable, providing everything you need to get started.

Applications:

Autonomous Navigation: Guide drones, robots, and vehicles with pinpoint accuracy.
Precision Agriculture: Optimize farming practices with precise positioning for planting, spraying, and harvesting.
Surveying and Mapping: Conduct detailed surveys and create accurate maps with ease.
Robotics: Enhance the navigation and positioning capabilities of your robotic systems.

Specifications:

GPS-RTK-SMA Breakout:

Concurrent reception of GPS, GLONASS, Galileo, and BeiDou
Receives L1C/A and L2C bands
Voltage: 5V or 3.3V
Current: 68mA – 130mA
Dimensions: 43.5mm x 43.2mm

GNSS Multi-Band Antenna:

Frequency: L1 Band (1559-1606MHz), L2/L5 Band (1197-1249MHz)
5m coaxial cable with SMA connector

Don’t settle for less when it comes to precision positioning. Elevate your projects with the SparkFun GPS-RTK-SMA Kit and experience the power of millimeter-level accuracy.

performance of the included antenna!

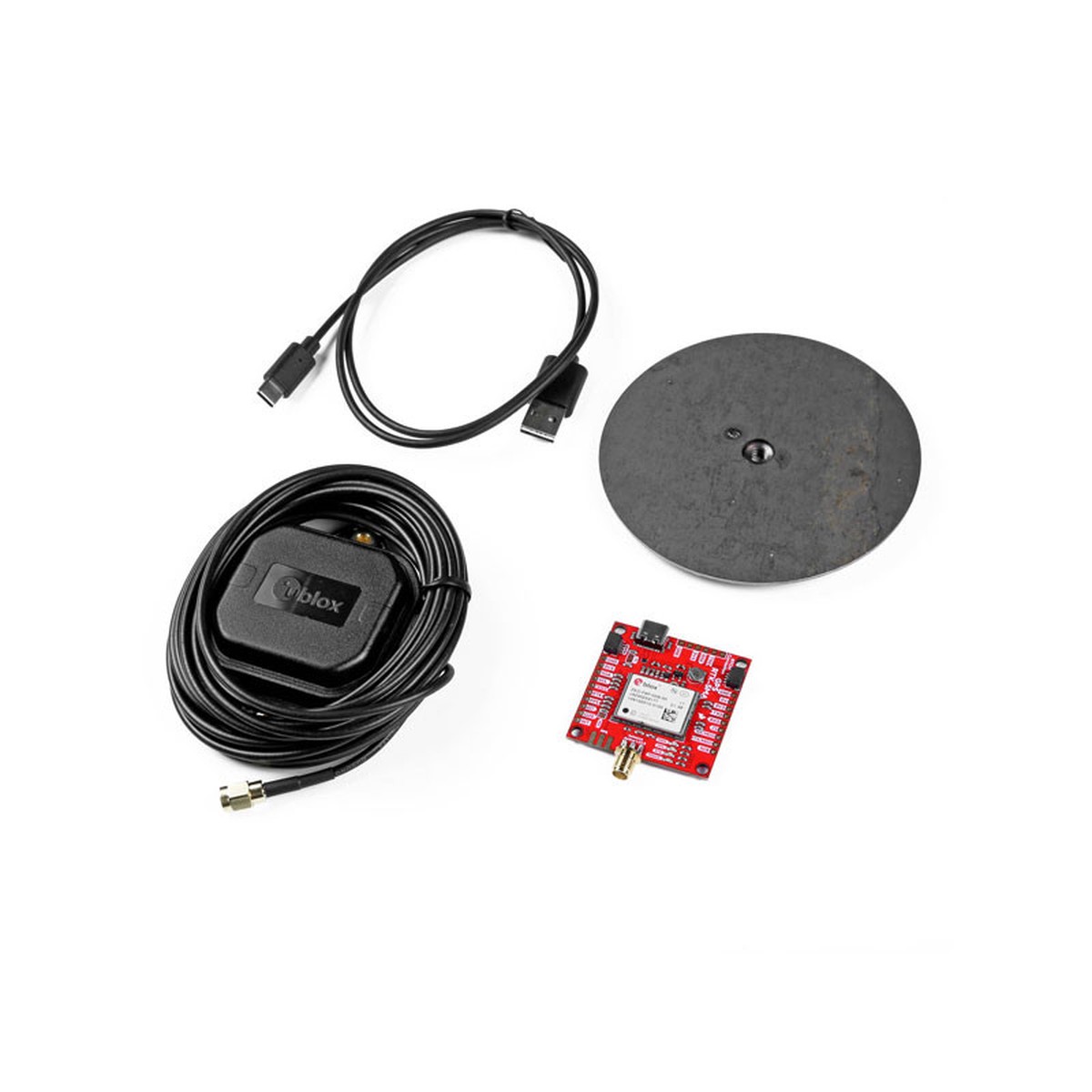

Package Includes

1x SparkFun GPS-RTK-SMA Breakout – ZED-F9P (Qwiic)

1x GNSS Multi-Band Magnetic Mount Antenna – 5m (SMA)

1x GPS Antenna Ground Plate

1x Reversible USB A to C Cable – 0.8m

Resources

GPS-RTK-SMA Breakout – ZED-F9P:

Schematic
Eagle Files
Mounting Holes and Dimension
Hookup Guide
Datasheet(ZED-F9P)
UBX and NMEA Protocol Manual(ZED-F9P)
Integration Manual(ZED-F9P)
Product Summary(ZED-F9P)
Release Notes – FW1.00(ZED-F9P)
Example RTCM outputfrom the ZED-F9P
u-blox ECCN
Arduino Library
GitHub

Antenna:

Datasheet(ANN-MB-00)
Product Summary

Ground Plate:

Achieving Centimeter Level Performance with Low Cost Antennas

USB Cable:

Product Drawing
