SparkFun Micro/Triple Axis Accelerometer Breakout LIS3DH (Qwiic): Low-Power 3DoF Motion Sensing

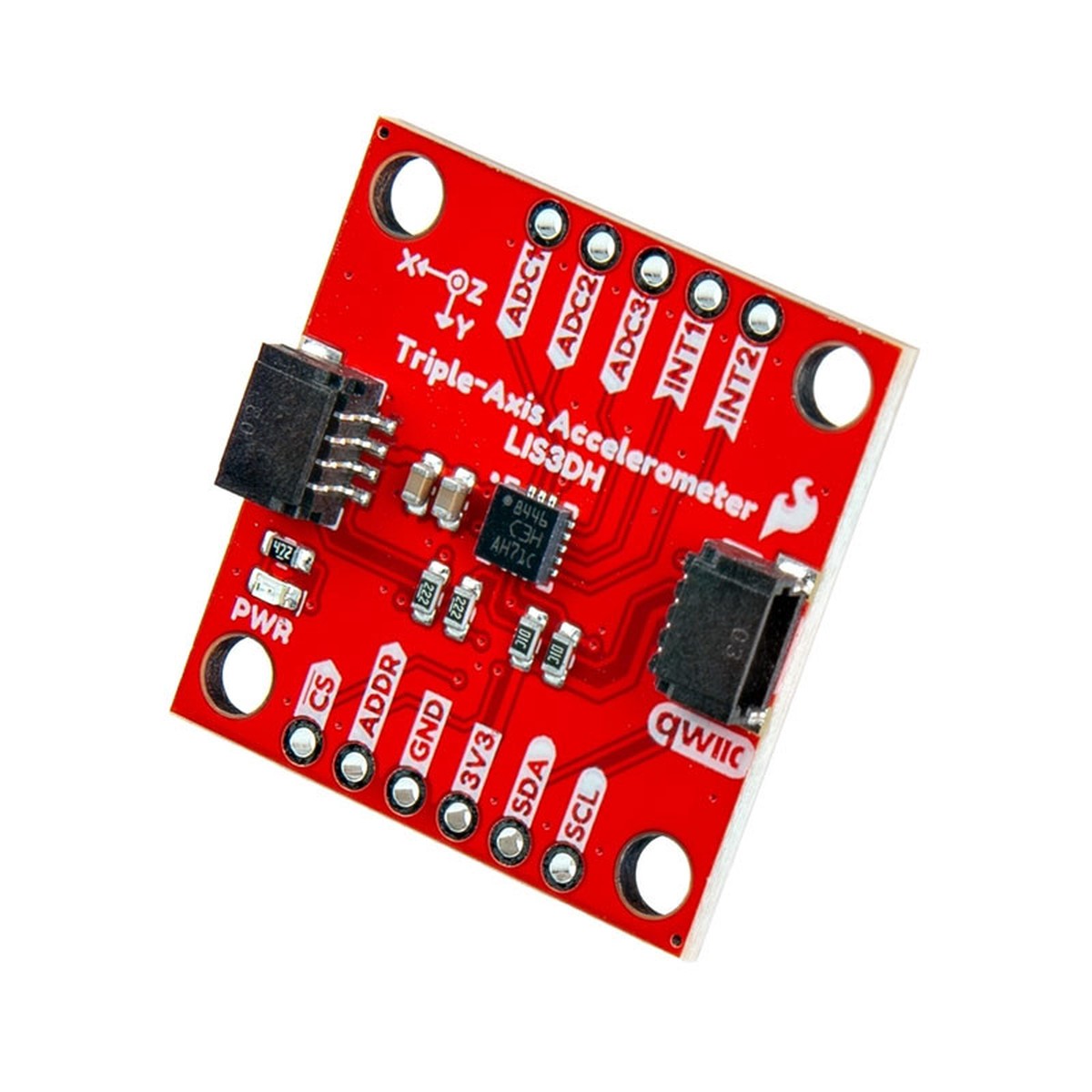

The SparkFun Triple Axis Accelerometer Breakout LIS3DH (Qwiic) is a compact, Qwiic-enabled board featuring the LIS3DH, a low-power 3-axis capacitive MEMS accelerometer from STMicroelectronics. With 12-bit resolution, selectable full-scale ranges (2g/4g/8g/16g), and multiple built-in motion detection capabilities, this sensor is ideal for adding translation and movement detection to your project. Classified as a 3DoF sensor, it can be combined with gyroscopes or magnetometers for a full IMU setup.
This updated version features a 1in 1in Qwiic form factor with dual Qwiic connectors for solder-free integration into SparkFuns Qwiic ecosystem. The breakout also supports both IC and SPI interfaces, allowing flexible system integration. With features like free-fall detection, 6D/4D orientation sensing, motion interrupts, and an embedded temperature sensor, the LIS3DH is well-suited for robotics, wearables, handheld devices, and IoT applications.
Note: This is a 3.3V device. Voltages above 3.6V can damage the IC. Use directly with 3.3V systems or include level shifting for SPI with 5V boards.
Key Features

Low-Power 3-Axis Accelerometer: Based on the STMicroelectronics LIS3DH.

Resolution: 12-bit digital output for precise acceleration measurement.

Selectable Full-Scale Range: 2g, 4g, 8g, 16g.

Interfaces: Supports both I2C and SPI communication.

Operating Voltage: 1.7V3.6V (3.3V recommended).

Qwiic-Enabled: Dual Qwiic connectors for easy daisy-chaining and solder-free wiring.

FIFO Buffer: 10-bit, 32-level FIFO for efficient data handling.

Built-in Features:

Free-fall detection

Motion detection

6D/4D orientation sensing

Embedded temperature sensor

Compact Size: Standard 1in 1in Qwiic breakout form factor.

Low Power Modes: Power-down, normal, and low-power operation.
