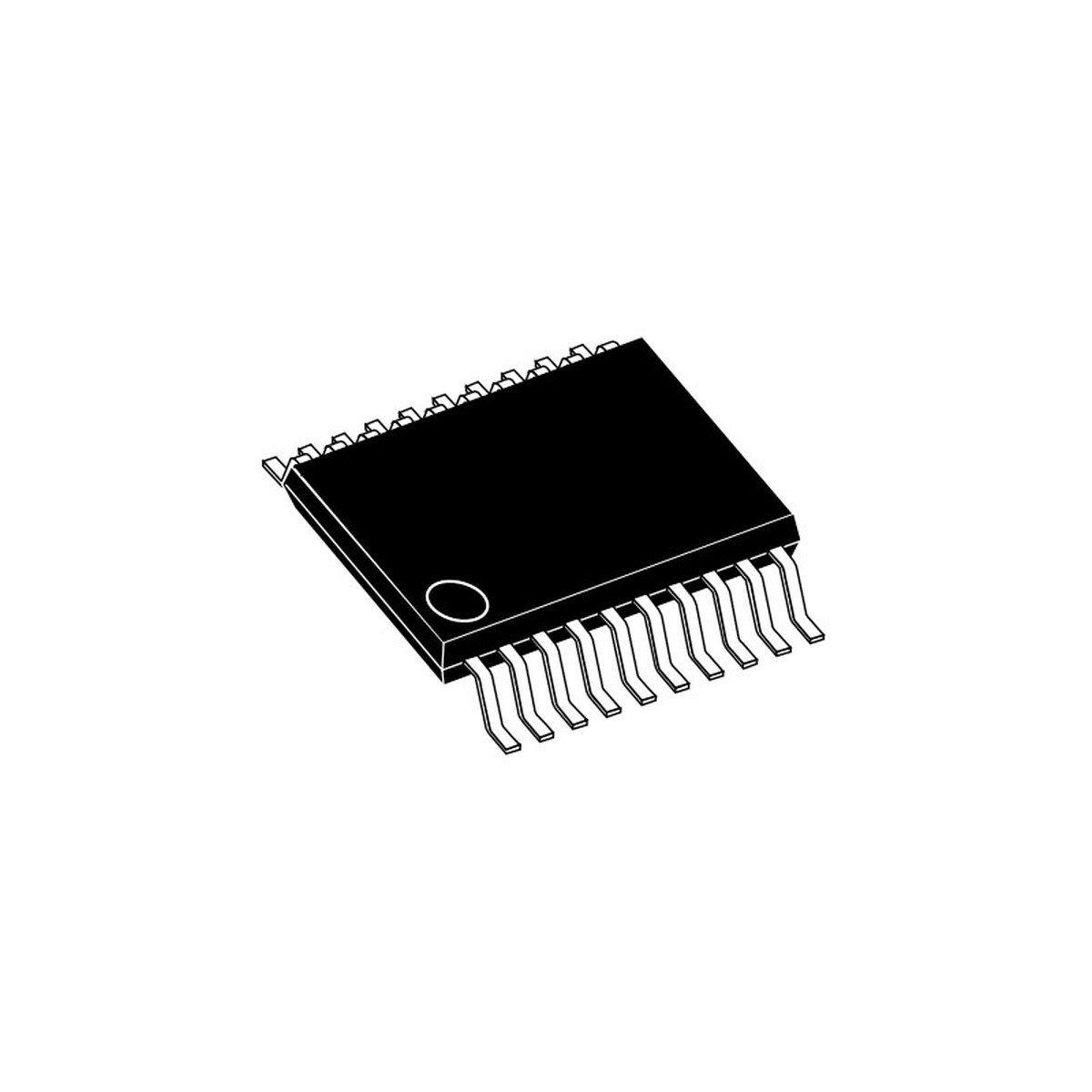

The main STM32G031F6P6 microcontrollers are based on the high-performance Arm Cortex-M0 32-bit RISC core running at up to 64 MHz. They offer high integration, are suitable for a wide range of applications in the consumer, industrial and appliance sectors and are ready for internet of things (IoT) solutions. The devices include a memory protection unit (MPU), fast built-in memories (8 KB SRAM and 32 KB flash memory with read protection, write protection, proprietary code protection and protected area), DMA, a wide range of systems. functions, advanced I/O and peripherals. The devices have a standard communication interface (two I2C, two SPI/one I2S and two USART), one 12-bit ADC (2.5 MSps) with up to 19 channels, internal voltage reference buffer, low-power RTC, PWM. a timer with advanced control that runs at up to double the CPU frequency, four general-purpose 16-bit timers, a 32-bit general-purpose timer, two low-power 16-bit timers, two watchdog timers, and a SysTick timer. The devices operate at an ambient temperature of -40 to 125 C and a supply voltage of 1.7 V to 3.6 V.
