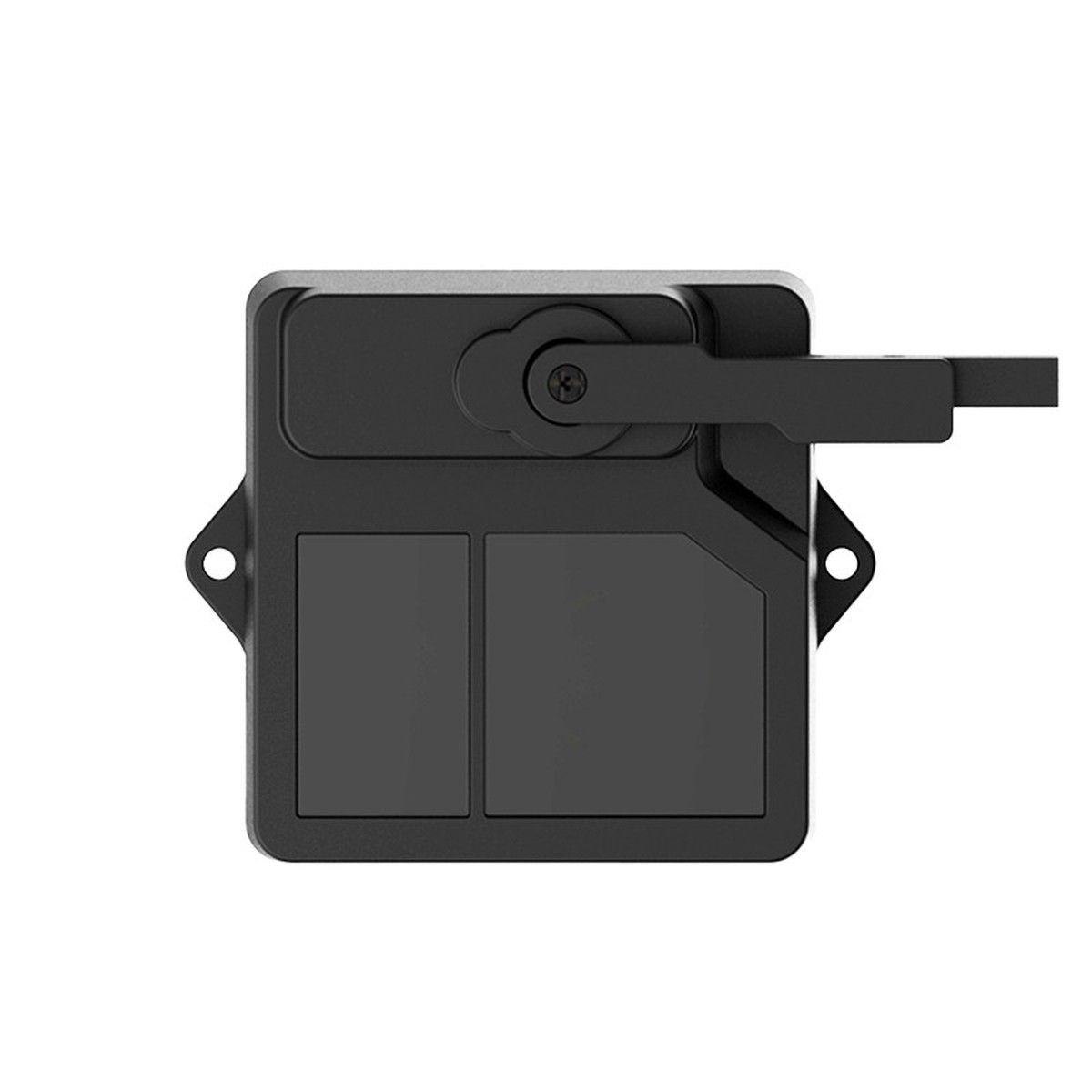

The TF02-Pro-W LiDAR Module IP5X 25m Level Detection Sensor is designed for accurate level detection. It comes with a special dust-removal wiper that cleans the lens automatically, ensuring optimal performance. Utilizing the ToF (Time of Flight) principle, the sensor offers stable and reliable ranging within a high range of up to 25 meters. Operating at a high frame rate of up to 1000Hz, it achieves precise results while keeping power consumption low. The product is compact, with dimensions of 85mmX59mmX43mm, making it versatile for various applications. It is housed in an IP5X enclosure, providing durability and protection against dust, ensuring a long-lasting and efficient performance.
Features

High range up to 25 meter
High frame rate (Up to 1000Hz)
Low power consumption
Self-cleaning function
Level Detection
Dimension (LXHXW) 85mmX59mmX43mm
IP5X Enclosure

Resources

BP-DS-28 A02 TF02-Pro-W Datasheet
BP-UM-30 A01 TF02-Pro-W User Manual
TF02-Pro-W Software communication
TF02-Pro-W_3D dtep file
