The XDS110 is designed to replace the ageing XDS100 family of JTAG debuggers with higher JTAG and cJTAG data throughput with additional support for ARM Serial Wire debug modes. The probe supports the traditional IEEE1149.1 (JTAG) as well as IEEE1149.7 (cJTAG) and ARM Serial Wire Debug (SWD)/Serial Wire Output (SWO) and operates with interface levels of +1.8-+3.6V with USB2.0 Full Speed (11Mbps) or High Speed (480Mbps) connection to the host.

Key Features:

Basic debug communications to the target system
IEEE 1149.1 (JTAG)
IEEE 1149.7 (cJTAG)
ARM serial wire debug (SWD)
Enhanced and auxiliary debug communications
Support for trace capture through ARM serial wire output (SWO) UART mode only
Support for UART communications to and from the target system
Support for GPIO channels
Target I/O voltage support from 1.8 V to 3.6 V
Power profiling features
Support for TI EnergyTrace
Host communications
USB 2.0 high-speed (HS) communication link to the debug host system
Probe power through USB 5-V supply
Expansion
A 30-pin expansion interface that can support a wide array of auxiliary functions
Target power can be supplied from the probe

Highlights

Serial Wire Debug (SWD) and Serial Wire Output (SWO) are available for selected MCUs and wireless connectivity MCUs
Core and System trace are available via the ETB in a selected ARM and DSP processors

Accessories

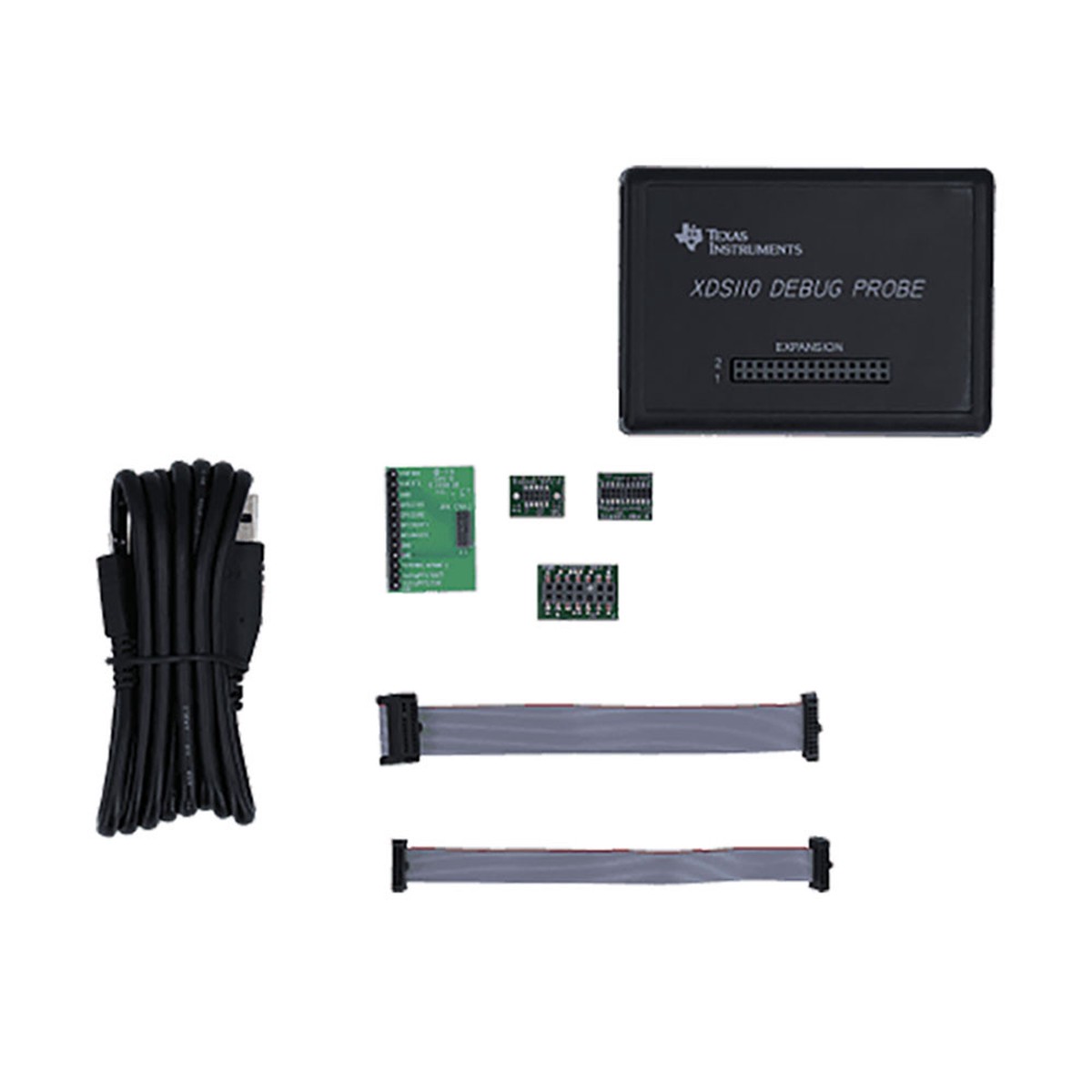

XDS110 debug pod
20-pin debug cable
14-pin auxiliary cable
TI 20-pin to TI 14-pin converter adapter
TI 20-pin to ARM Cortex 20-pin converter adapter
TI 20-pin to ARM Cortex 10-pin converter adapter
USB2.0 cable
English Quick start guide leaflet
Korean Quick start guide leaflet
Terms and conditions leaflet

Relevant Resources:
XDS110 Debug Probe User’s Guide

FAQs:

Q:What is the purpose of the TMDSEMU110-U – XDS110 JTAG Debug Probe?
A:The XDS110 is designed as a JTAG debugger to replace the XDS100 family, offering higher JTAG and cJTAG data throughput and support for ARM Serial Wire debug modes.

Q:What debug communication protocols does the probe support?
A:The probe supports IEEE 1149.1 (JTAG), IEEE 1149.7 (cJTAG), and ARM Serial Wire Debug (SWD) protocols.

Q:What voltage levels does the probe operate with?
A:The probe operates with interface levels of +1.8-+3.6V.

Q:What additional features does the probe have?
A:In addition to basic debug communications, the probe supports trace capture through ARM Serial Wire Output (SWO) UART mode, UART communications to and from the target system, and GPIO channels.

Q:What accessories are included with the XDS110 debug probe?
A:The XDS110 debug pod comes with a 20-pin debug cable, a 14-pin auxiliary cable, TI converter adapters for different pin configurations, and a USB2.0 cable.
