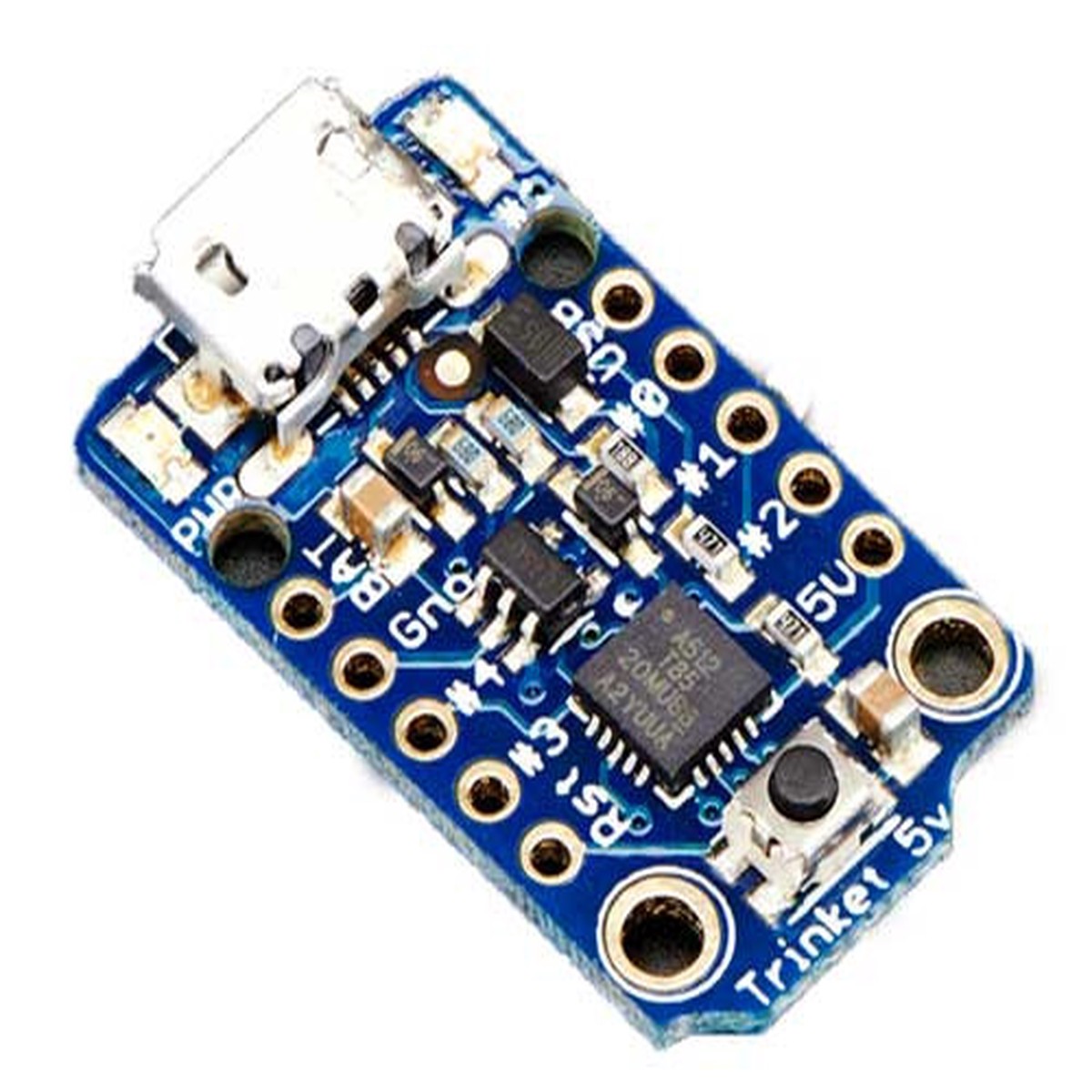

Trinket-Mini Microcontroller 5V Logic

$9.99 $7.99

  • Shipping Icon
    Free
    Shipping
  • Shipping Icon
    Safe
    Payment
  • Shipping Icon
    Best
    Services
Categories :
  • Electrical
  • It’s a tiny microcontroller board, built around the Atmel ATtiny85, a little chip with a lot of power. The Attiny85 is a fun processor because despite being so small, it has 8K of flash, and 5 I/O pins, including analog inputs and PWM ‘analog’ outputs. It can be used for sensors and components that can use or require 5V logic and can run at 8 MHz or at 16MHz by setting the software-set clock frequency.

    Key Features

    ATtiny85 on-board, 8K of flash, 512 byte of SRAM, 512 bytes of EEPROM

    Internal oscillator runs at 8MHz, but can be doubled in software for 16MHz

    USB bootloader with a nice LED indicator looks just like a USBtinyISP so you can program it with AVRdude (with a simple config modification) and/or the Arduino IDE (with a few simple config modifications)

    Mini or Micro-B USB jack for power and/or USB uploading, you can put it in a box or tape it up and use any USB cable for when you want to reprogram.

    ~5.25K bytes available for use (2.75K taken for the bootloader)

    Onboard power regulator with 150mA output capability and ultra-low dropout. Up to 16V input, reverse-polarity protection, thermal and current-limit protection

    Power with either USB or external output (such as a battery) – it’ll automatically switch over

    On-board green power LED and red pin #1 LED

    Reset button for entering the bootloader or restarting the program. No need to unplug/replug the board every time you want to reset or update!

    5 GPIO – 2 shared with the USB interface. The 3 independent IO pins have 1 analog input and 2 PWM output as well. The 2 shared IO pins have 2 more analog inputs and one more PWM output.

    Hardware I2C / SPI capability for breakout & sensor interfacing

    Resources
    Datasheet for the onboard regulator used (MIC5225 3.3V and 5.0V)
    Setting up with Arduino IDE
    Programming with Arduino IDE
    Programming with AVRdude
    For a lot more details, including a tour of the Trinket, pinout details and Arduino IDE examples, check out the Introducing Trinket tutorial
