This SPI Interface 40PIN GPIO Extension Header Board is designed to be compatible with Raspberry Pi series boards and Jetson Nano. It features a standard Raspberry Pi 40PIN GPIO extension header, which supports various boards. It has a SPI interface, which can be used to connect with other controller boards like Raspberry/Arduino/Nucleo, etc. The board comes with an onboard voltage translator, which makes it compatible with 3.3V/5V MCUs. The operating voltage range of the board is 3.3V~5V, and it has a 3-wire SPI and 4-wire SPI interface. The outline dimension of the board is 65mm 30.2mm, and it has a mounting hole size of 3.0mm.

Features

Raspberry Pi connectivity, compatible with Raspberry Pi 2B/3B/Zero/Zero W (directly-pluggable)
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Package Content

e-Paper Driver HAT x1

RPi screws pack (2pcs) x1

PH2.0 20cm 8Pin x1

Resources
Wiki :www.waveshare.com/wiki/e-Paper_Driver_HAT
Dimensions

Short video about e-Paper Driver HAT

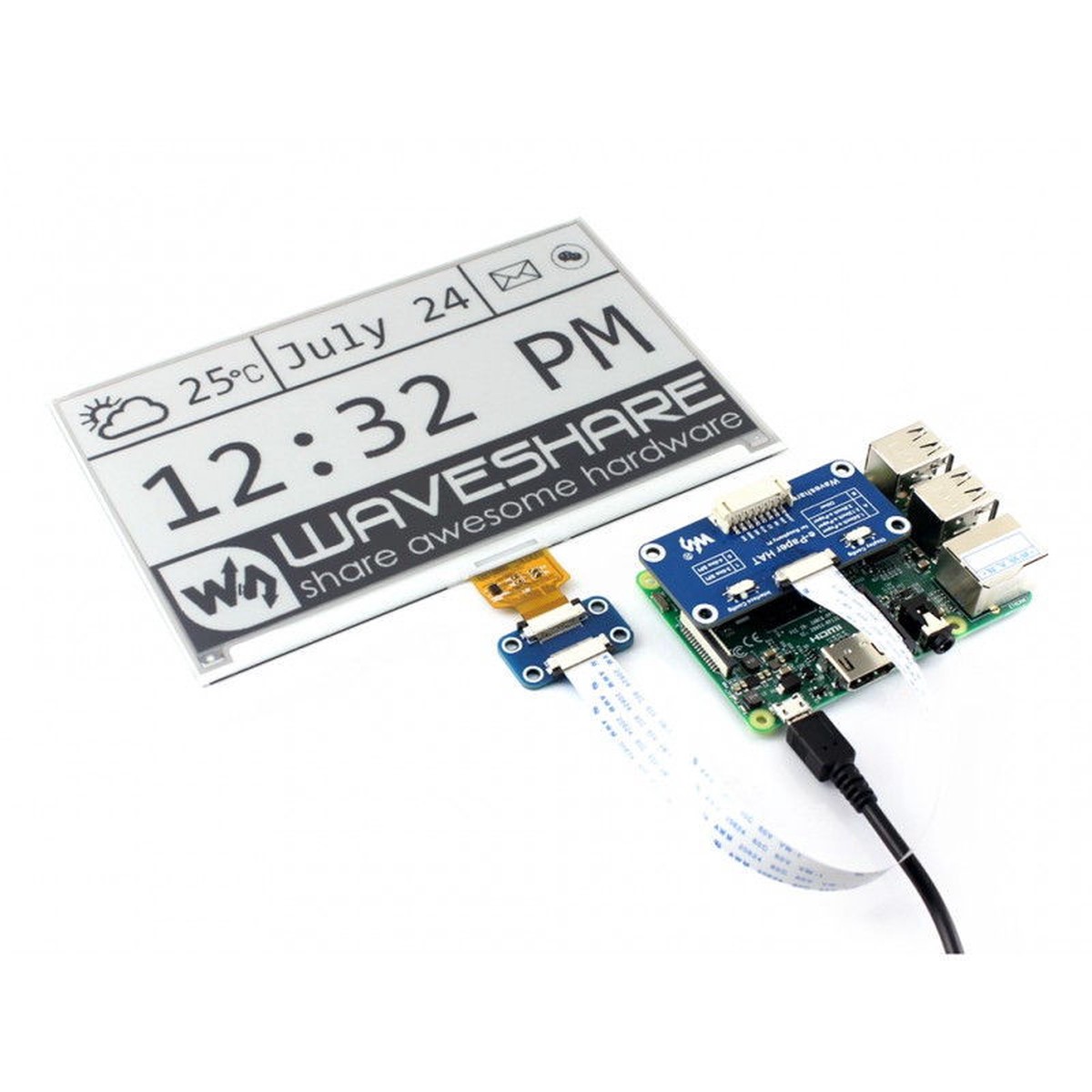

Short video about e-Paper Driver HAT which is designed for Waveshare e-Ink raw panels. SPI interface, PIN header can directly connect to Raspberry Pi.
