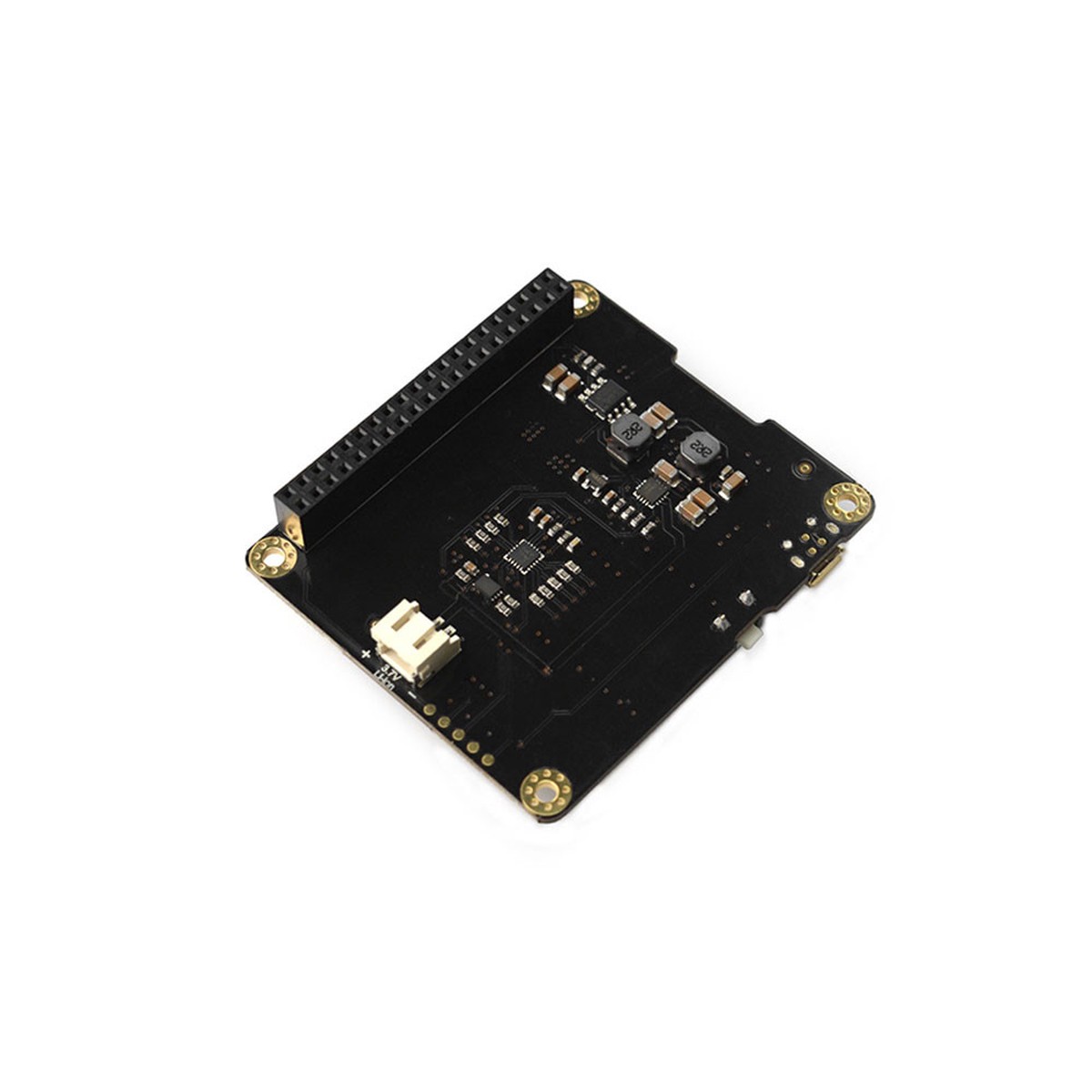

UPS HAT For Raspberry Pi 4B 3B Plus And 3B With Intelligent Battery Management
The UPS HAT for Raspberry Pi 4B, Raspberry Pi 3B+, and Raspberry Pi 3B is an uninterruptible power supply expansion board designed to provide reliable backup power and safe shutdown protection for Raspberry Pi systems. When the primary power source is interrupted, the UPS HAT continues supplying stable power, allowing the Raspberry Pi to complete critical operations and perform a controlled shutdown. This helps prevent file system corruption, data loss, and hardware damage caused by sudden power failures.
Built with a MAX17043 fuel gauge and an onboard microcontroller, the UPS HAT provides accurate battery capacity and voltage monitoring through I2C communication. Raspberry Pi can directly access battery information for intelligent power management applications. Five onboard status LEDs visually indicate battery capacity without requiring software configuration. Featuring an advanced power management design with over 90% conversion efficiency and a non-diode power path architecture, the HAT maintains low operating temperatures and stable performance even during continuous high-load operation.
Key Features

Uninterruptible Power Supply: Provides backup power during power interruptions.
Safe Shutdown Protection: Helps prevent system corruption and data loss.
Compatible With Raspberry Pi 4B: Designed for Raspberry Pi 4B systems.
Supports Raspberry Pi 3 B+ and 3B: Broad Raspberry Pi compatibility.
MAX17043 Fuel Gauge: Accurate battery capacity monitoring.
Battery Voltage Monitoring: Real-time voltage measurement.
I2C Communication Interface: Direct communication with Raspberry Pi.
Onboard Microcontroller: Intelligent battery data processing.
5 Battery Status LEDs: Visual battery level indication.
High Power Conversion Efficiency: Over 90% efficiency.
Low Heat Generation: Optimized thermal performance under load.
Advanced Power Management: Reliable operation for critical applications.

Applications

Raspberry Pi backup power systems
Edge computing devices
Raspberry Pi camera systems
Mobile data collection platforms
Portable monitoring equipment
Industrial Raspberry Pi applications
IoT gateways
Embedded control systems
Smart home controllers
Remote sensing systems
Mobile computing projects
Continuous operation applications

Notes

1.3.7V Lithium Battery is not included in the package due to transportation constraints
2. Please use a 3.7V Lithium Battery that meets the standard specification
3. Please note that there would be a certain degree of heating in the power source area of the product during operation. You can never be too careful in use.

Package Contents

Raspberry Pi UPS HAT x1

Copper Columns and Screws x4 sets
