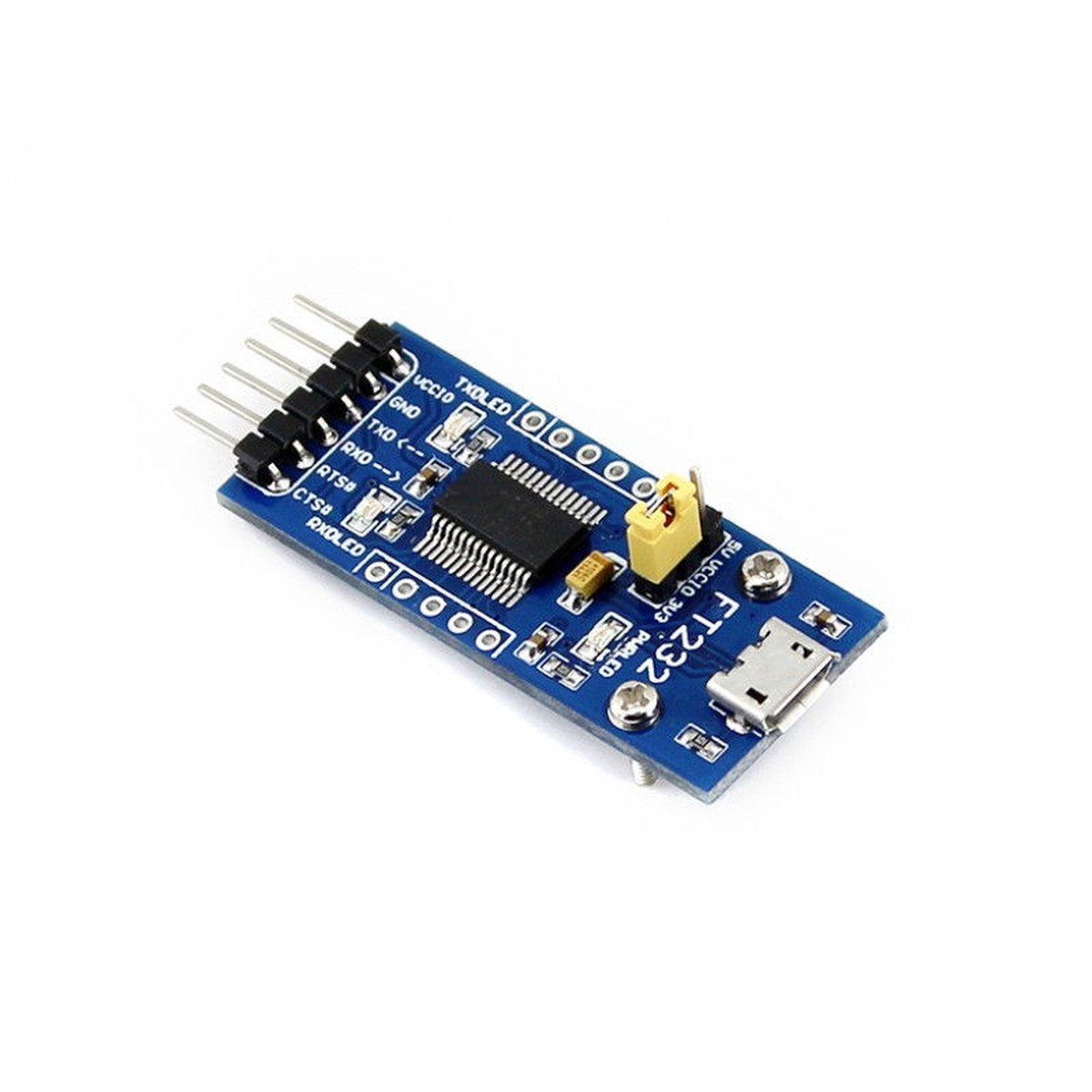

The Original FT232RL onboard is a versatile board that supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10. It features 3 power modes, including a 5V output, 3.3V output, or the option to be powered by a target board (3.3V-5V). The board also includes 3 LEDs (TXD LED, RXD LED, POWER LED) and functional pins such as TXD, RXD, RTS#, CTS# which are connected to the onboard soldered pinheaders. Additionally, the other pins are accessible on the drill holes, which come with separate pinheaders for easy connection to the user’s system. The pitch is compatible with breadboards.

Features

Original FT232RL onboard

Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10…

3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)

3 LEDs: TXD LED, RXD LED, POWER LED

Functional Pins
-TXD, RXD, RTS#, CTS# : connected to the onboard soldered pinheaders
-The other Pins : accessable on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards)

How to Use
In the case of working with a MCU:

VCCIO – 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
GND – GND
TXD – MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) RXD - MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
RTS – MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) CTS - MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

Package Content

FT232 USB UART Board (micro) x 1

5-pin male pinheader & 5-pin female pinheader x 2

6-pin custom connector jumper wire x 1

Development Resources
Wiki : www.waveshare.com/wiki/FT232_USB_UART_Board_(micro)

Dimension
