Resource

Wio-E5 Development Board v1.0.brd
Wio-E5 Development Board v1.0.pdf
Wio-E5 Development Board v1.0.sch
Wio-E5 Datasheet:
Wio-E5 datasheet and specifications
Wio-E5 AT Command Specification
STM32WLE5JC Datasheet
Wio-E5 Certifications:
Wio-E5-HF Certification CE-VOC-RED
Wio-E5-HF FCC Certification -DSS
Wio-E5-HF FCC Certification -DTS
Relevant SDK:
STM32Cube MCU Package for STM32WL seriesDatasheet

LoRaWAN Development Kit With STM32WLE5JC And SX126x Wireless Connectivity For Long Range IoT Applications

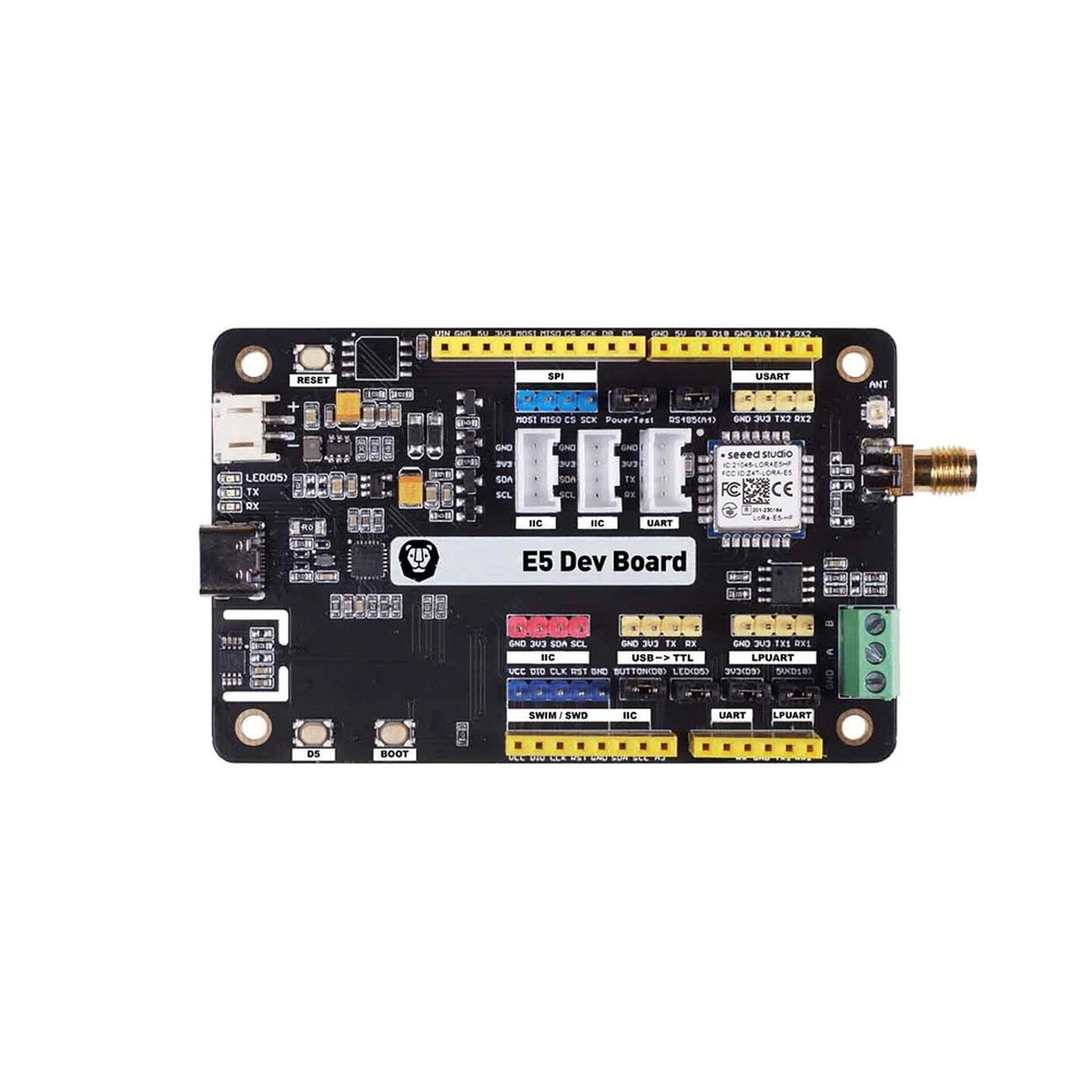

The Wio-E5 Dev Kit from Seeed Studio is a compact and high-performance LoRaWAN development platform built around the STM32WLE5JC microcontroller and SX126x Long Range wireless technology. Designed for rapid prototyping and low-power wide-area network applications, this development kit enables reliable long-range communication for industrial IoT, smart agriculture, wireless monitoring, sensor networks, and automation systems. The onboard Wio-E5 module supports global LoRaWAN frequency plans and AT command firmware for simplified development and deployment.
This ultra-low-power development board combines an ARM Cortex-M4 processor with integrated Long Range wireless capability, offering extended communication range and excellent RF sensitivity. Multiple interfaces, including RS-485, Grove connectors, and rich GPIO expansion, simplify hardware integration for embedded-system developers. With support for LoRaWAN servers such as The Things Stack and ChirpStack, the Wio-E5 Dev Kit is suitable for scalable IoT deployments and wireless sensor applications requiring long-distance connectivity and low power consumption.
Key Features

STM32WLE5JC Processor: Integrated ARM Cortex-M4 microcontroller with embedded SX126x Long Range wireless functionality.
Long Range Wireless Support: Supports both Long Range and GFSK wireless communication protocols.
High RF Performance: Up to 22 dBm transmit power and -136.5 dBm receiver sensitivity at SF12 and 125 KHz bandwidth.
Extended Communication Distance: Supports up to 158 dB link budget for reliable long-distance wireless communication.
Global LoRaWAN Compatibility: Supports multiple global frequency plans and LoRaWAN protocols.
AT Command Firmware: Preloaded AT command firmware simplifies development and rapid prototyping.
Rich Interface Options: Includes RS-485, Grove connectors, RESET and BOOT buttons, and fully accessible GPIOs.
Ultra-Low Power Design: Optimized for battery-powered IoT sensor nodes and LPWAN applications.
Wide LoRaWAN Platform Support: Compatible with The Things Stack, ChirpStack, and other LoRaWAN servers.
Certified Wireless Module: FCC, CE, IC, and Telec certified for reliable deployment and compliance.

Applications

Long Range IoT sensor nodes
Smart agriculture monitoring
Wireless meter reading
Industrial automation systems
Environmental monitoring
Smart-city infrastructure
Remote wireless communication
LPWAN embedded projects
Asset tracking systems
Low-power sensor networks

Hardware Overview

Package List

1 x LoRa-E5 Dev Board

1 x Antenna(EU868/US915)

1 x USB TypeC (20cm)

1 x 2xAA 3V Battery Holder
