Wylex NMDRS26SSLHIA

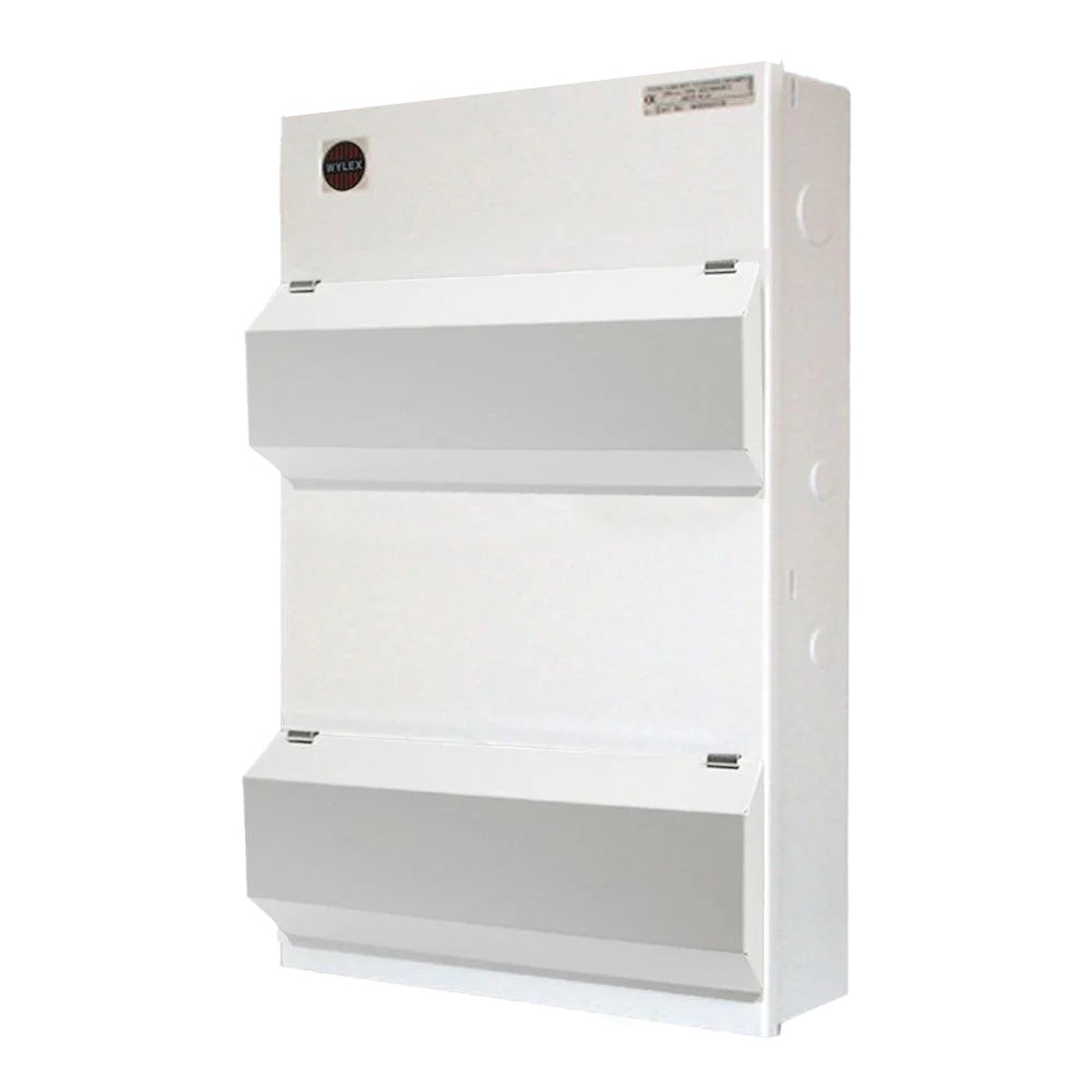

Wylex 26 Way Duplex Metal High Integrity Consumer Unit

Specification
Enclosure : Metal
Number of Ways : 26 Fully Configurable
Supplied with : 100 A Switch Disconnector, 2 x 80A 30mA RCDs

Dimensions
Width : 343mm
Height : 500mm
Depth : 127mm

Key Features:

All metal enclosure, no external plastic parts
Low Smoke & Fume paint
Non combustible cover blanks available
Compact enclosure
Cable entry knockouts on 5 sides.Top, Bottom, Left, Right and Rear
Raised & removable DIN rail / busbar assembly

Wylex NMDRS26SSLHIA Overview
This large consumer unit is fully Amendment 3 & 17th edition compliant and designed for use in large domestic installations or small industrial environments. The 26 way NMDRS26SSLHIA is constructed from heavy gauge steel and rust protected giving excellent resilience to both weathering and mechanical damage.
