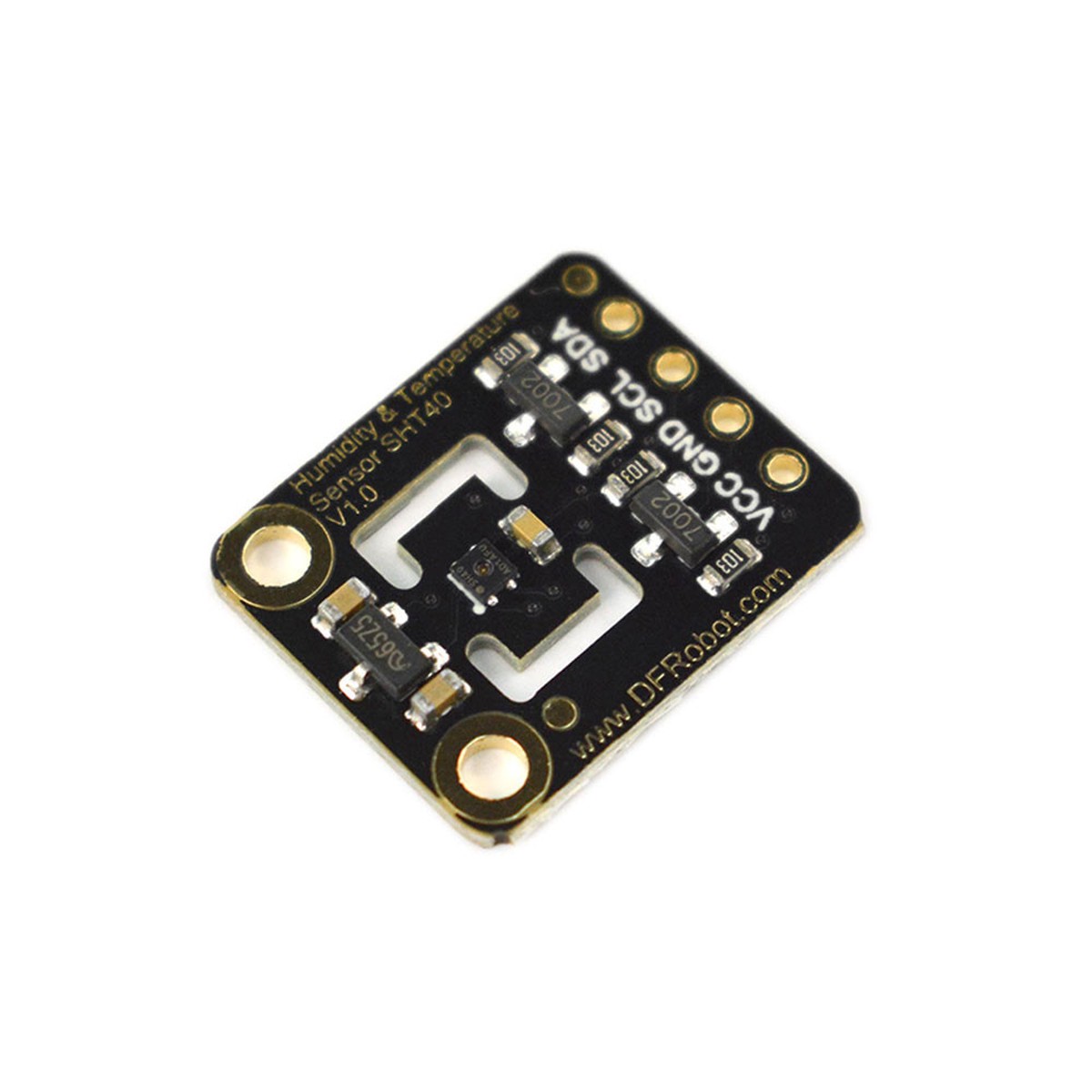

Sensirion’s SHT40 is a state-of-the-art digital temperature and humidity sensor, representing the fourth generation of such sensors from the company. Like its predecessors, the SHT40 boasts unparalleled precision within its measuring range. This cutting-edge sensor can detect humidity levels ranging from 0-100%RH and temperatures ranging from -40C to 125C with typical accuracies of +-1.8RH and +-0.2C, respectively. Moreover, the SHT40’s internal variable power heater allows it to operate effectively in extreme conditions, such as those found in humid environments.
With a board supply voltage of 3.3V to 5V and a current consumption of less than 0.15mA in low power mode, the SHT40 is ideal for use in mobile or wireless battery-driven applications. It is particularly well-suited for a range of applications, including urban environment monitoring, industrial automation, smart homes, intelligent buildings, and other Internet of Things (IoT) scenarios.
Key Features

High Accuracy

Low Power Consumption

Small Size

Fast Response

Applications

Intelligent Buildings and Furniture
Weather Station
Warehouses
Animals and Plants Culture
Animal Incubator
Germinating Box for plant seed

Connection Diagram

Shipping List

FermionSHT40 humidity & temperature sensor x1
